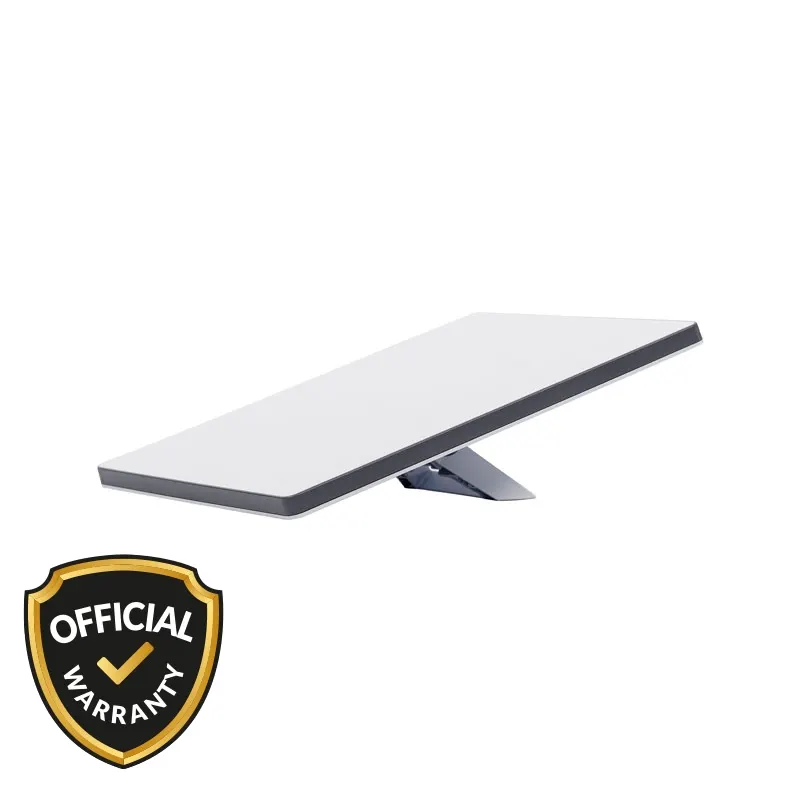

Starlink Mini Kit

Description

Key features & Specifications of Starlink Mini Kit

Key features:

1. Ultra-Reliable Satellite Internet Anywhere
2. Very Wide Coverage & Many Connected Devices
3. All-Weather Durable Build
4. Easy Install + Wired Flexibility

Specifications:

Starlink Modular with Integrated router:

1. Antenna: Electronic Phased Array
2. Field of View: 110 °
3. Orientation: Software Assisted Manual Orienting
4. Environmental Rating: IP67 Type 4 with DC Power Cable and Starlink Plug/Cable installed
5. Operating Temperature: -30°C to 50°C (-22°F to 122°F)
6. Wind Speed: Operational 96 kph+ (60 mph+)
7. Snow Melt Capability: Up to 25mm / hour (1 in / hour)
8. Power Consumption: Average: 25-40W
9. Input Rating: 12-48V 60W
10. USB PD Requirement: 100W, 20V/5A Minimum
11. Wi-Fi Technology: 802.11a/b/g/n/ac
12. Generation: WiFi 5
13. Bandwidth: Dual Band 3 x 3 MU-MIMO
14. Ethernet Ports: 1
15. Coverage: Up to 112 m² (1,200 ft²)
16. Security: WPA2
17. Power Indicator: LED | rear face plate, lower left corner
18. Mesh Compatibility: Compatible with all Starlink mesh systems *Not compatible with 3rd party mesh systems
19. Devices Connect: up to 128 devices

Power Supply:

1. Environmental Rating: IP66 Type 4
2. Operating Temperature: -30°C to 50°C (-22°F to 122°F)
3. Power Specifications: 100-240V ~ 1.6A 50 - 60 Hz

Dimension:

1. 5 x 259 x 38.5 mm (11.75 x 10.2 x 1.45 in) (Modular)
2. 91 x 44 x 51 mm (3.6 in x 1.7 in x 2.0 in) (Power Supply)

Weight:

1. 10 kg (2.43 lb) (Modular)
2. 2 kg (0.44 lbs) (Power Supply)
