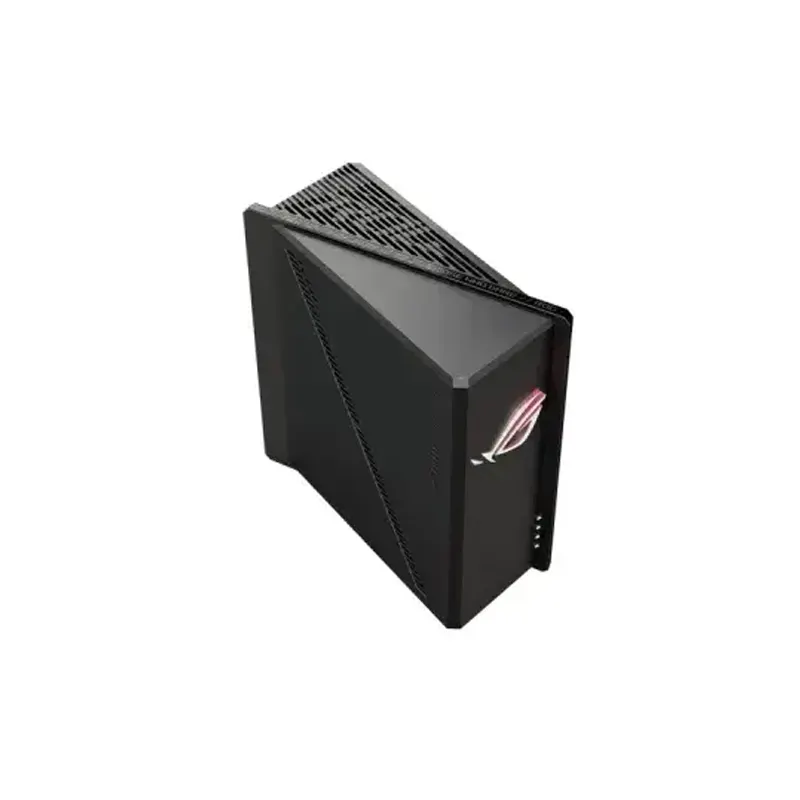

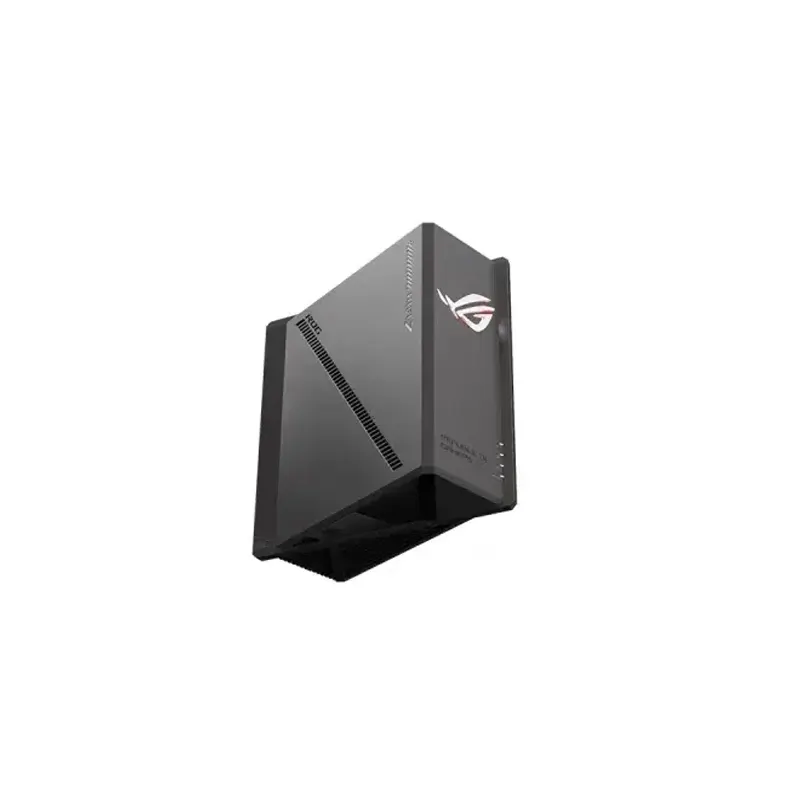

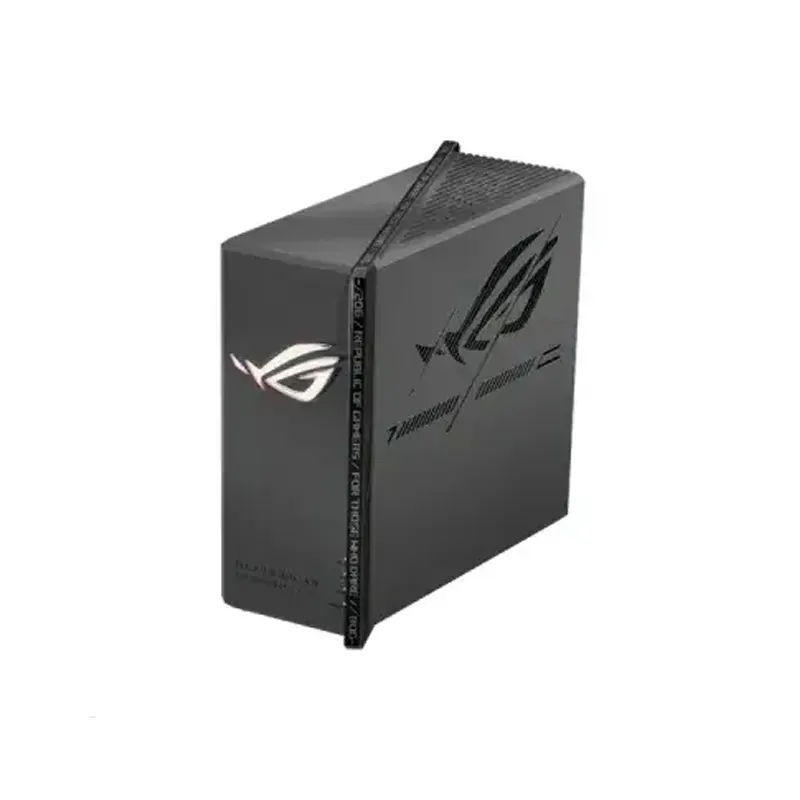

ASUS ROG Strix GS-BE7200X Dual-band WiFi 7 AiMesh Gaming Router

Description

ASUS ROG Strix GS-BE7200X Dual-band WiFi 7 AiMesh Gaming Router

Specifications:

General Information:

1. Wireless: MU-MIMO
2. Network Standard: WiFi 7 (802.11be) | IEEE 802.11a | IEEE 802.11b | IEEE 802.11g | IEEE 802.11n | IEEE 802.11ac | IEEE 802.11ax | IEEE 802.11be | IPv4 | IPv6
3. Data Rate: WiFi Data Rate: 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps | 5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
4. Antenna: Internal Antenna x 8
5. Transmit/Receive: 2.4GHz 4x4 | 5GHz 4x4
6. Processor: 1.8GHz Tri-core processor
7. Memory: 128 MB Flash | DDR4 1 GB RAM
8. Boosts speed: OFDMA (Orthogonal Frequency Division Multiple Access) | Beamforming: standards-based and universal | 4096-QAM high data rate | 20/40/80/160 MHz bandwidth
9. Operating Frequency: 2.4 GHz | 5 GHz

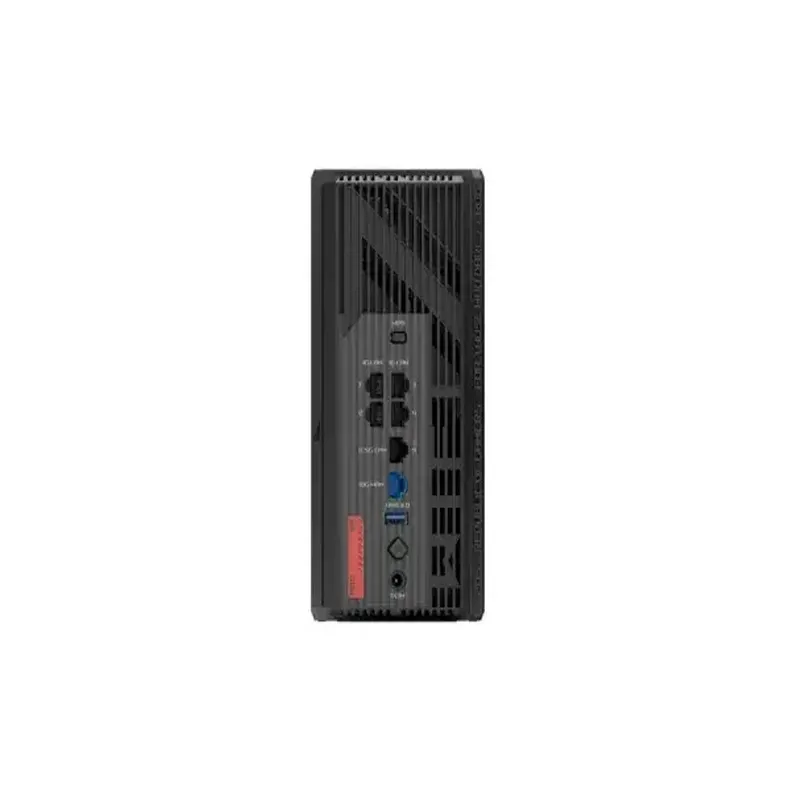

10. Ports: I/O Ports: | 1 x 10G for WAN | 1 x 2.5G for LAN | 4 x 1G for LAN | USB 3.2 Gen1 x1
11. Button: Power | WPS | Reset
12. LED Indicator: Internet(WAN) | WiFi | LAN| Power
13. Power Supply: AC Input: 110V~240V(50~60Hz) | DC Output: 12V with max. 3A current
14. AiMesh: Primary AiMesh Router | AiMesh Node
15. Game: Game Boost / Acceleration | Mobile Game Mode | Gear Accelerator | UU boost | ROG_First | OpenNAT (Game Profile) | Gaming Port | Gaming Network
16. AiProtection: AiProtection Pro | Router Security Assessment | Malicious Site Blocking | Two-Way IPS | Infected Device Prevention and Blocking
17. Parental Control: Time Scheduling | Reward | Parental Control Customized Internet Schedule | Maximum Parental Control Profile: 64

Network:

1. Guest Network: The Guest Network provides Internet connection for guests but restricts access to your local network
2. Maximum Guest Network Rule: 2.4 GHz + 5 GHz: 3 | Guest Network Connection time limit
3. Guest Network Encryption: Open system, WPA/WPA2/WPA3-Personal

Operation Mode:

1. Wireless Router Mode
2. AiMesh Node Mode
3. Access Point Mode
4. Media Bridge Mode
5. Repeater Mode

Wireless Security:

1. WPS: Let's Encrypt | DNS-over-TLS | SSH | Security Scan
2. Firewall: Maximum Firewall Keyword Filter: 64 | Maximum Firewall Network Service Filter: 32 | Maximum Firewall URL Filter: 64

Traffic Control:

1. Adaptive QoS: Bandwidth Monitor | Bandwidth Limiter | Maximum Bandwidth Limiter Rule: 32
2. Traditional QoS: Traffic Monitor: Real-time Traffic Monitor | Wired Traffic Monitor | Wireless Traffic Monitor
3. Traffic Analyzer: Traffic Analysis Period: Daily, Weekly, Monthly | Website History

WAN:

1. PPPoE
2. PPTP
3. L2TP
4. Automatic IP
5. Static IP
6. IPSec

LAN:

1. DHCP Server
2. IGMP Snooping
3. IPTV
4. Manually Assign IP Address
5. Maximum Manually Assign IP Address Rule: 128
6. Wake on LAN (WOL)

VPN:

1. Instant Guard
2. VPN Client L2TP
3. VPN Client Open VPN
4. VPN Client PPTP
5. VPN Client Wire Guard
6. VPN Server IPsec
7. VPN Server Open VPN
8. VPN Server PPTP
9. VPN Server Wire Guard
10. VPN Fusion
11. Support Surf shark

USB application:

1. 4G / 5G Auto Mobile Tethering
2. File System: HFS+ | NTFS | vFAT | ext2 | ext3 | ext4
3. Safely Remove Disk
4. Download Master
5. Media Server
6. Samba Server
7. FTP Server
8. Shared Folder Privileges

Administration:

1. Configuration Backup and Restore
2. Diagnosis Tools
3. Feedback System
4. System Log
5. New Device Connect Notification
6. Login Captcha
7. Connection Diagnosis
8. Auto Firmware Update
