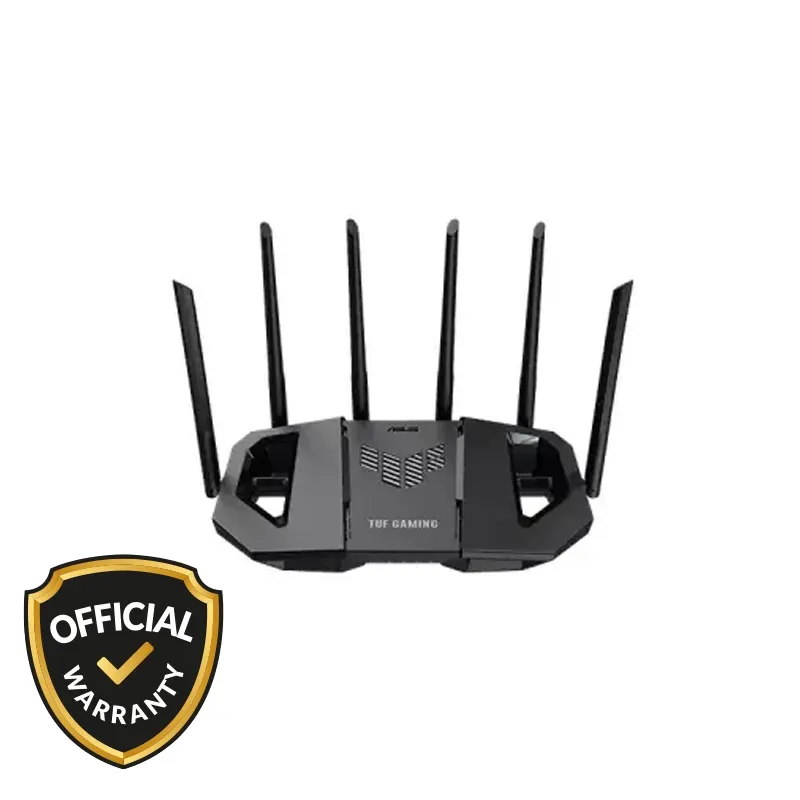

Asus TUF Gaming BE6500 Dual Band WiFi 7 AiMesh Extendable Gaming Router

Description

Asus TUF Gaming BE6500 Dual Band WiFi 7 AiMesh Extendable Gaming Router

Specifications:

General Information:

1. User Interface: WEB: ASUSWRT | APP: ASUS Router APP
2. WiFi Data Rate: WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps | WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
3. Antenna: External fixed antenna x 6
4. Transmit/Receive: 2.4GHz 2x2 | 5GHz 4x4
5. Processor: 1.5GHz Quad-core Processor
6. Memory: 256 MB Flash and 1 GB RAM
7. Boosts speed: OFDMA (Orthogonal Frequency Division Multiple Access) | Beamforming: standard-based and universal | 4096-QAM High Data Rate | 20/40/80/160 MHz bandwidth
8. Operating Frequency: 2.4 GHz | 5 GHz
9. Ports: 1 x 2.5GbE for WAN| 3 x 2.5GbE for LAN | 1 x USB 3.2 Gen1
10. Button: WPS Button, Reset Button, Power Button
11. LED Indicator: WAN(Internet) x1 | LAN x1 | 5GHz x 1 | 2.4GHz x1 | Power x1
12. Power Supply: AC Input: 110V~240V(50~60Hz) | DC Output: 12 V with max. 2.5 A current
13. AiMesh: Primary AiMesh Router | AiMesh Node
14. Game: Game Boost / Acceleration | Gear Accelerator | OpenNAT (Game Profile) | Gaming Port
15. AiProtection: AiProtection Pro | Router Security Assessment | Malicious Site Blocking | Two-Way IPS | Infected Device Prevention and Blocking
16. Parental Control: Allow you to block access to unwanted websites and apps | Web & Apps Filters | Time Scheduling | Safe Browsing, Customized Internet Schedule | Maximum Parental Control Profile: 64 | Maximum Parental Control Content Filter Rule: 64

Network:

1. Support Guest Network | Maximum Guest Network Rule: 2.4 GHz + 5 GHz: 3
2. Guest Network Connection Time Limit
3. Guest Network Encryption: Open system, WPA/WPA2/WPA3 Personal

Traffic Control:

1. Adaptive QoS: Bandwidth Monitor | Bandwidth Limiter | Maximum Bandwidth Limiter Rule: 32
2. Traditional QoS: Traffic Monitor | Real-time Traffic Monitor | Wired Traffic Monitor | Wireless Traffic Monitor
3. Traffic Analyzer: Traffic Analysis Period: Daily, Weekly, Monthly | Website History

Operation mode:

1. Wireless Router Mode
2. AiMesh Node Mode
3. Access Point Mode
4. Media Bridge Mode
5. Repeater Mode

Wireless Security:

1. Security: AiProtection | VPN | WPA/WPA2/WPA3 Personal | WPA/WPA2/WPA3 Enterprise | Open System & OWE | WPS | Let's Encrypt | DNS-over-TLS | SSH | Security Scan
2. Firewall: Maximum Firewall Keyword Filter: 64 | Maximum Firewall Network Service Filter: 32 | Maximum Firewall URL Filter: 64

Network Standard:

1. IEEE 802.11a
2. IEEE 802.11b
3. IEEE 802.11g
4. WiFi 4 (802.11n)
5. WiFi 5 (802.11ac)
6. WiFi 6 (802.11ax)
7. WiFi 7 (802.11be)
8. IPv4
9. IPv6

Wireless:

1. MU-MIMO
2. UTF-8 SSID
3. WiFi MAC Address Filter: Maximum MAC Filters: 64
4. Wireless Scheduler
5. Airtime Fairness
6. RADIUS Client
7. Universal Beamforming

WAN:

1. Internet Connection Type: PPPoE | PPTP | L2TP | Automatic IP | Static IP | IPSec
2. Dual WAN
3. 3G / 4G LTE dongle
4. Port forwarding: Maximum Port Forwarding Rule: 64
5. Port triggering: Maximum Port Triggering Rule: 32
6. DMZ
7. DDNS
8. PPTP Pass-Through
9. L2TP Pass-Through
10. IPSec Pass-Through
11. RTSP Pass-Through
12. 323 Pass-Through
13. SIP Pass-Through
14. PPPoE Relay

LAN:

1. DHCP Server
2. IPTV
3. Manually Assign IP Address
4. Maximum Manually Assign IP Address Rule: 64
5. Wake on LAN (WOL)

VPN:

1. Instant Guard
2. VPN Client L2TP
3. VPN Client Open VPN
4. VPN Client PPTP
5. VPN Client WireGuard
6. VPN Server IPSec
7. VPN Server Open VPN
8. VPN Server PPTP
9. VPN Server WireGuard
10. VPN Fusion
11. Support Surfshark
12. Support Nord VPN

USB application:

1. HFS+ | NTFS | vFAT | ext2 | ext3 | ext4 | FAT32
2. Safely Remove Disk
3. AiCloud
4. Download Master
5. AiDisk
6. Media Server
7. Time Machine
8. Samba Server
9. FTP Server
10. Shared Folder Privileges

Administration:

1. Configuration Backup and Restore
2. Diagnosis tools
3. Feedback System
4. System Log
5. New Device Connect Notification
6. Login Captcha
7. Connection Diagnosis
8. Auto Firmware Update
