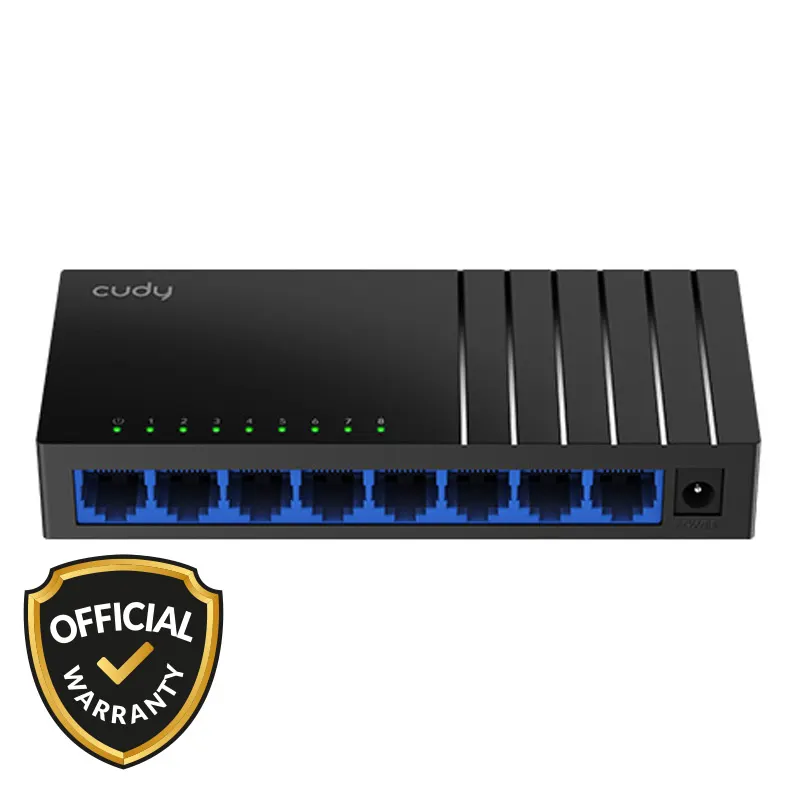

Cudy GS108D 8-Port Gigabit Desktop Switch

Cudy GS108D 8-Port Gigabit Desktop Switch

General

Description

Features and Specifications of Cudy GS108D 8-Port Gigabit Desktop Switch

Key Features:

1. Desktop and wall-mounting
2. 8× 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
3. Max 170 m transmission distance with Cat 5e or higher standard cables
4. IEEE 802.3x flow control and 4 Mbit packet buffer prevent packet loss
5. Power saving strategy saves power consumption when ports are idle

Specifications:

General:

1. MAC Address Table: 8K
2. Packet Buffer: 4 Mbit
3. Switching Capacity: 16 Gbps
4. Jumbo Frame: 15 KB
5. Max Forwarding Rate: 11.904 Mpps

Standards:

1. 3i: 10 Mbps over Twisted Pair
2. 3u: 100 Mbps over Twisted Pair
3. 3ab: 1 Gbps over Twisted Pair
4. 3x: Flow Control

Network Media:

1. 10BASE-T: UTP Cat 3,4,5 cable (max 100 m)
2. 100BASE-Tx: UTP Cat 5, 5e cable (max 100 m)
3. 1000BASE-T: UTP Cat 5e, 6 or higher standard cable (max 170 m)
4. Ethernet Ports: 8× 10/100/1000 Mbps Ethernet Ports

Hardware:

1. Efficiency and Reliability: IGMP, Loop Detection
2. LED Indication: Power, Link/Act LEDs
3. Transfer Method: Store-and-Forward
4. Installation: Desktop, Wall-Mounting
5. Casing: ABS Plastic

Power:

1. Power: DC 5 V / 0.55 A
2. Max Power Consumption: 2.75 W
3. Max Heat Dissipation: 9.3775 BTU/h
4. Power Saving: Saves Power when Ports are Idle

Environment:

1. Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
2. Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~ 167 ℉)
3. Operating Humidity: 0% ~ 100% non-condensing
4. Storage Humidity: 5% ~ 90% non-condensing

Dimensions:

1. Dimensions (LxWxH): 138×61.5×24mm (5.43×2.42×0.94 inches)
