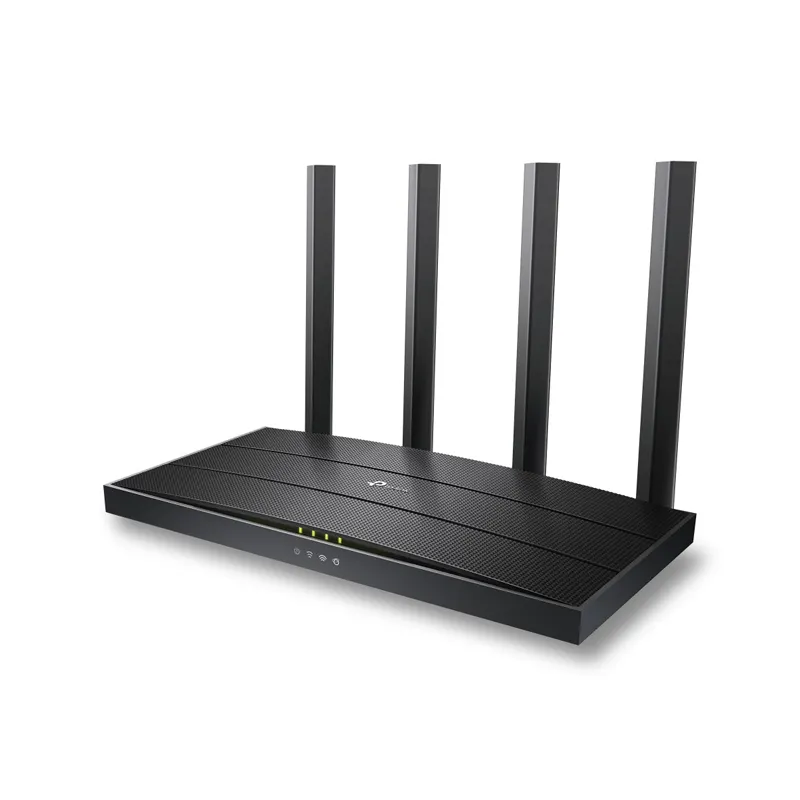

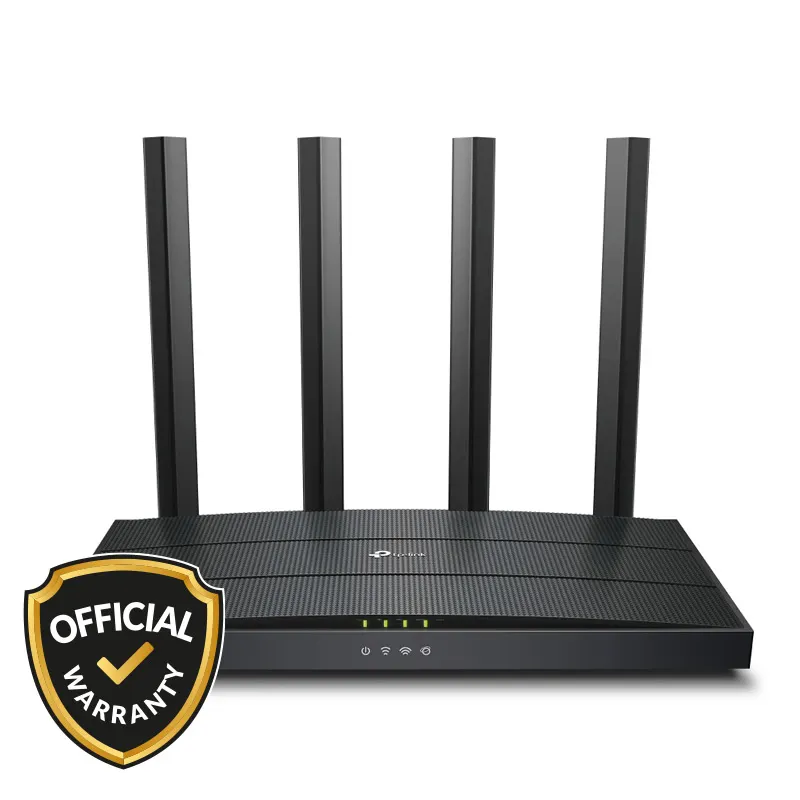

TP-Link Archer AX12 AX1500 Dual-Band Gigabit Wi-Fi 6 Router

TP-Link Archer AX12 AX1500 Dual-Band Gigabit Wi-Fi 6 Router

General

Description

TP-Link Archer AX12 AX1500 Dual-Band Gigabit Wi-Fi 6 Router Specifications

Key Features:

1. Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
2. Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band).
3. Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.
4. More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas.
5. Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.
6. Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
7. Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices.

Specifications:

Wireless:

1. Standards: Wi-Fi 6 | IEEE 802.11ax/ac/n/a 5 GHz | IEEE 802.11n/b/g 2.4 GHz
2. WiFi Speeds: AX1500 | 5 GHz: 1201 Mbps (802.11ax) | 2.4 GHz: 300 Mbps (802.11n)
3. WiFi Range: 2-3 Bedroom Houses | 4× Fixed High-Performance Antennas | Multiple antennas form a signal-boosting array to cover more directions and large areas | Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity:

1. High Dual-Band: Allocate devices to different bands for optimal performance
2. OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients
3. Airtime Fairness: Improves network efficiency by limiting excessive occupation
4. 4 Streams: Connect your devices to more bandwidth

Working Modes:

1. Router Mode
2. Access Point Mode

Security:

Network Security:

1. SPI Firewall
2. Access Control
3. IP & MAC Binding
4. Application Layer Gateway

Guest Network:

1. 1× 5 GHz Guest Network
2. 1× 2.4 GHz Guest Network

VPN Server:

1. OpenVPN
2. PPTP

WiFi Encryption:

1. WPA2-PSK
2. WPA2-PSK/WPA-PSK
3. WPA3-Personal
4. WPA3-Personal/WPA2-PSK
5. WPA2-Enterprise
6. WPA/WPA2-Enterprise encryptions

WiFi Transmission Power:

1. CE: <20dBm (2.4 GHz) | <23dBm (5.15 GHz~5.25 GHz)
2. FCC: <30dBm (2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity:

5 GHz:

1. 11a 6Mbps: -95dBm, 11a 54Mbps: -79dBm
2. 11ac VHT20_MCS0: -96dBm, 11ac VHT20_MCS8: -66dBm
3. 11ac VHT40_MCS0: -94dBm, 11ac VHT40_MCS9: -63dBm
4. 11ac VHT80_MCS0: -91dBm, 11ac VHT80_MCS9: -60dBm
5. 11ax HE20_MCS0: -95dBm, 11ax HE20_MCS11: -66dBm
6. 11ax HE40_MCS0: -92dBm, 11ax HE40_MCS11: -65dBm
7. 11ax HE80_MCS0: -89dBm, 11ax HE80_MCS11: -62dBm

2.4 GHz:

1. 11g 6Mbps: -96dBm, 54Mbps: -80dBm
2. HT20-MCS0: -97dBm, MCS7: -78dBm
3. HT40-MCS0: -94dBm, MCS7: -75dBm

Hardware:

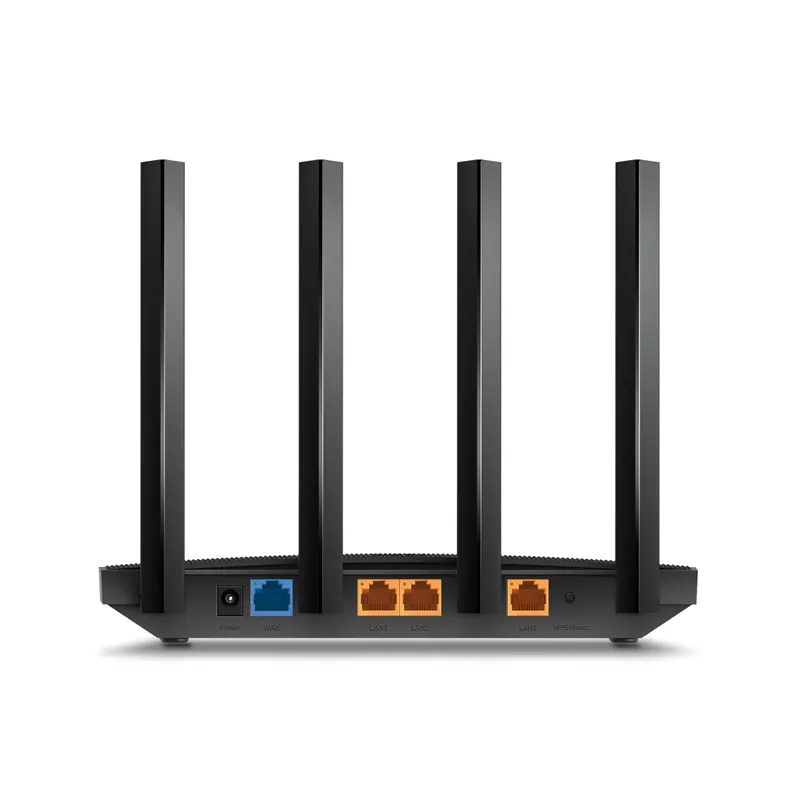

1. Ethernet Ports: 1× Gigabit WAN Port | 3× Gigabit LAN Ports
2. Buttons: WPS/Reset Button
3. Power: 12 V ⎓ 1 A

Software:

1. Protocols: IPv4 | IPv6
2. Parental Controls: URL Filtering | Time Controls
3. WAN Types: Dynamic IP | Static IP | PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
4. Quality of Service: QoS by Device
5. Cloud Service: Auto Firmware Upgrade | OTA Firmware Upgrade | TP-Link ID | DDNS
6. NAT Forwarding: Port Forwarding | Port Triggering | DMZ |UPnP
7. IPTV: IGMP Proxy | IGMP Snooping | Bridge | Tag VLAN
8. DHCP: Address Reservation | DHCP Client List | Server
9. DDNS: TP-Link | NO-IP | DynDNS

Environment:

1. Operating Temperature: 0℃~40℃ (32℉ ~104℉)
2. Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
3. Operating Humidity: 10%~90% non-condensing
4. Storage Humidity: 5%~90% non-condensing

System Requirements:

1. Operating Systems: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC OS, NetWare, UNIX, or Linux
2. Supported Browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browsers
3. Hardware: Cable or DSL Modem
4. Subscription: Subscription with an internet service provider (for internet access)

Physical:

1. Dimensions (W×D×H): 8.5 × 4.6 × 1.3 in (215 × 117 × 32 mm)
