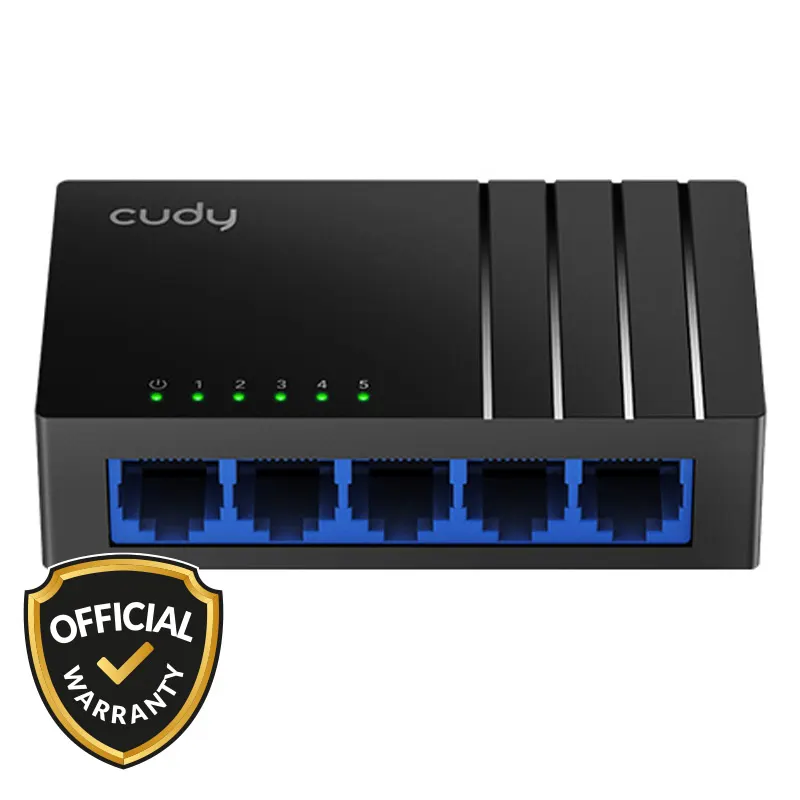

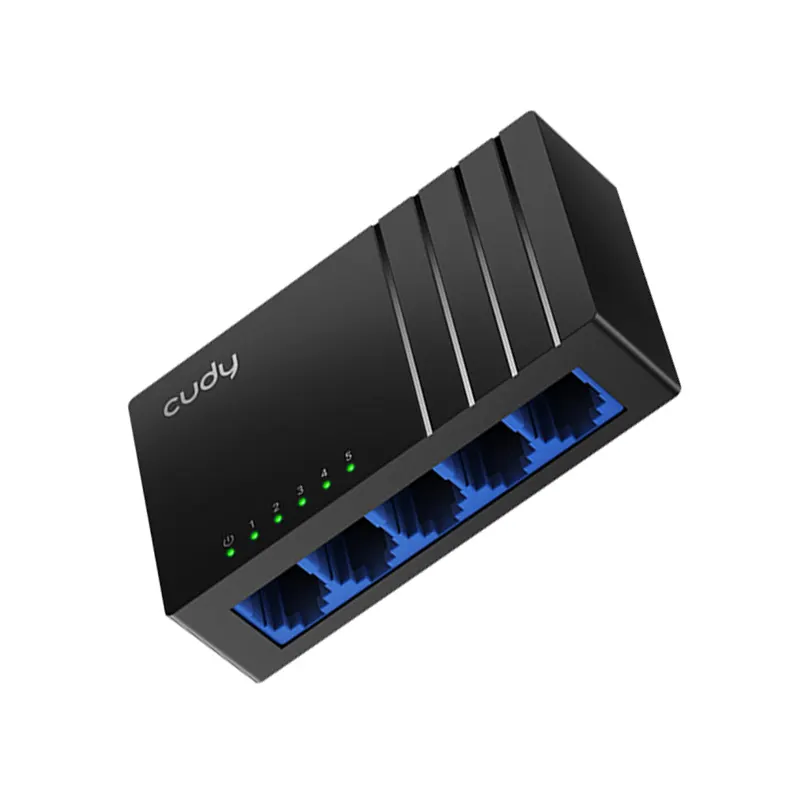

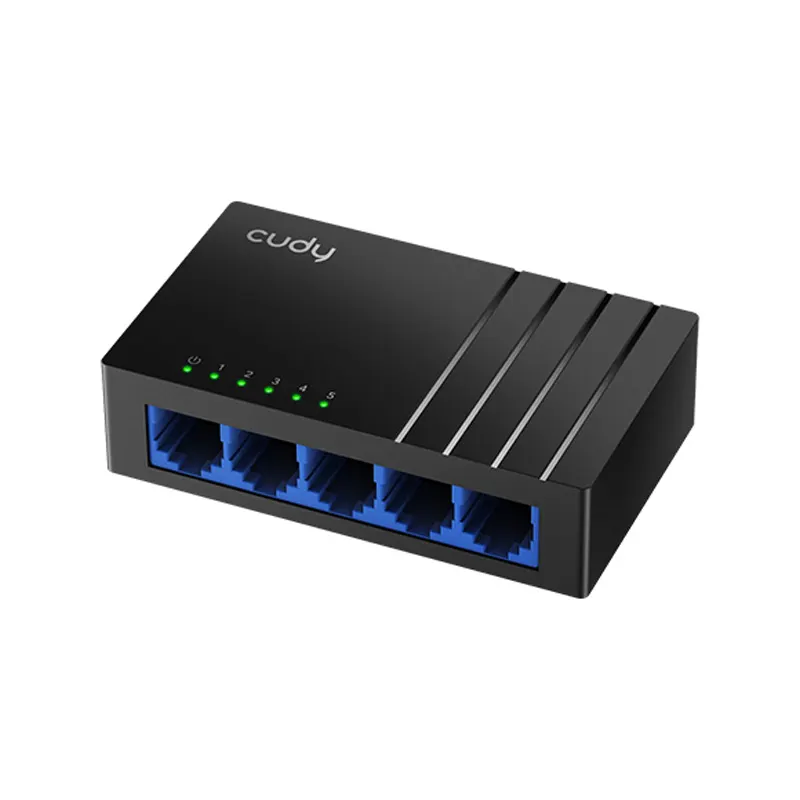

Cudy GS105D 5-Port Gigabit Desktop Switch

Cudy GS105D 5-Port Gigabit Desktop Switch

General

Description

Features and Specifications of Cudy GS105D 5-Port Gigabit Desktop Switch

Key Features:

1. 5× 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
2. Max 140 m transmission distance with Cat 5e or higher standard cables
3. IEEE 802.3x flow control and 3 Mbit packet buffer prevent packet loss
4. Power saving strategy saves power consumption when ports are idle
5. Desktop and wall-mounting

Specifications:

General:

1. Ethernet Ports: 5× 10/100/1000 Mbps Ethernet Ports
2. MAC Address Table: 2K
3. Packet Buffer: 3 Mbit
4. Jumbo Frame: 15 KB
5. Switching Capacity: 10 Gbps
6. Max Forwarding Rate: 7.44 Mpps

Network Media:

1. 10BASE-T: UTP Cat 3,4,5 cable (max 100 m)
2. 100BASE-Tx: UTP Cat 5, 5e cable (max 100 m)
3. 1000BASE-T: UTP Cat 5e, 6 or higher standard cable (max 140 m)

Standards:

1. 3i 10 Mbps over Twisted Pair
2. 3u 100 Mbps over Twisted Pair
3. 3ab 1 Gbps over Twisted Pair
4. 3x Flow Control

Hardware:

1. LED Indication: Power, Link/Act LEDs
2. Transfer Method: Store-and-Forward
3. Installation: Desktop, Wall-Mounting
4. Casing: ABS Plastic

Power:

1. Power Saving: Saves Power when Ports are Idle
2. Power Output: DC 5 V / 0.55 A (Adapter)
3. Max Power Consumption: 2 W
4. Max Heat Dissipation: 6.82 BTU/h

Environment:

1. Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
2. Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~ 167 ℉)
3. Operating Humidity: 0% ~ 100% non-condensing
4. Storage Humidity: 5% ~ 90% non-condensing

Dimensions:

1. Dimensions (L*W*H): 88×52.5×24 mm 3.46×2.07×0.94 inches
