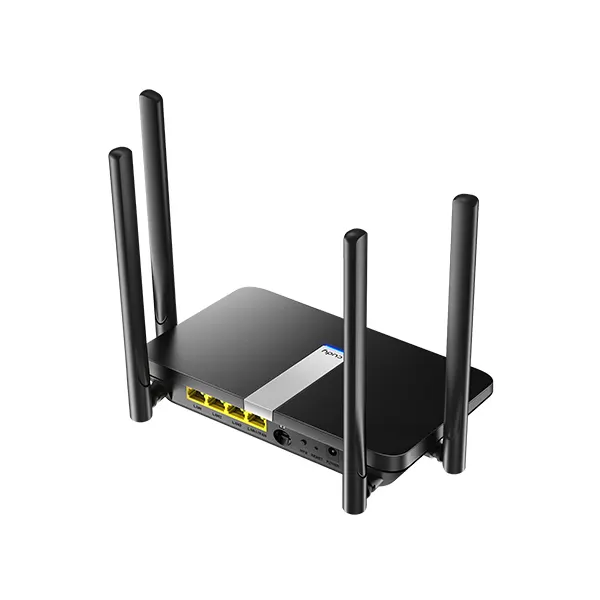

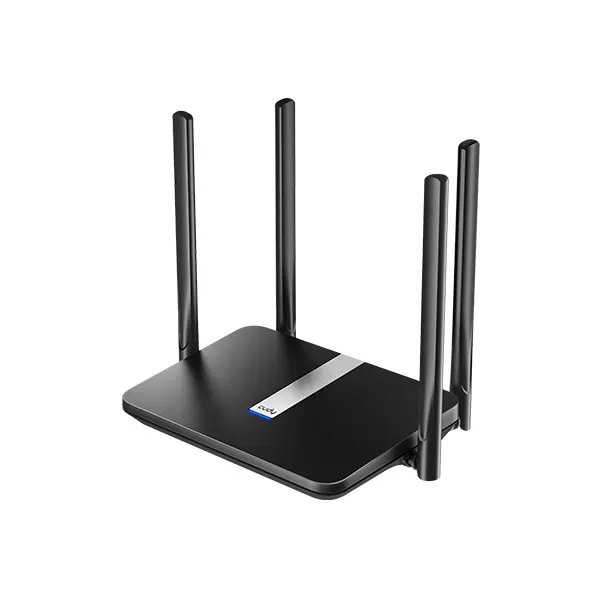

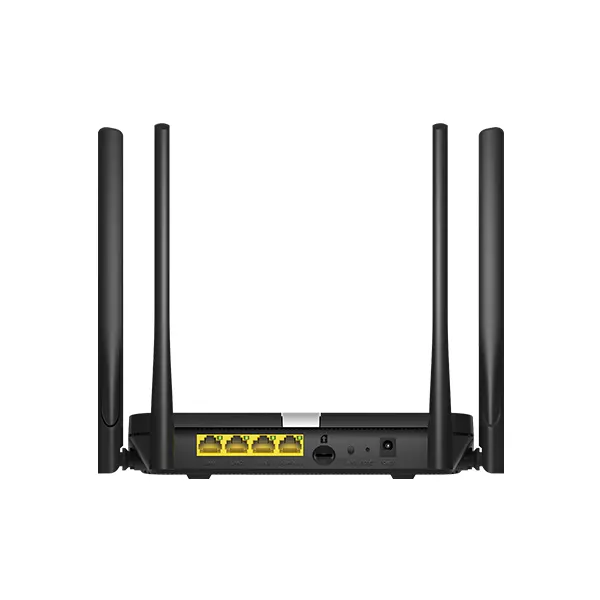

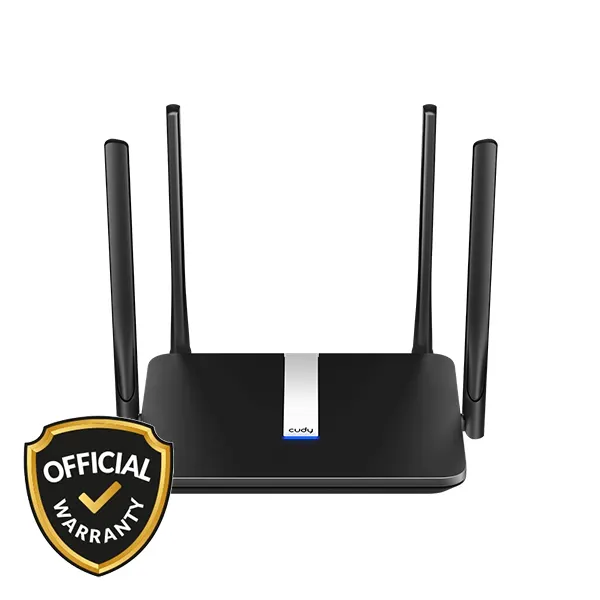

Cudy 4G AC1200 Dual Band Wi-Fi Router (LT500)

Description

Key Features & Specifications of Cudy 4G AC1200 Dual Band Wi-Fi Router (LT500)

Key Features:

1. 4G Cat. 4 with Max 150 Mbps DL
2. 4-Stream Dual-Band Wi-Fi 5
3. 867Mbps + 300Mbps Wi-Fi
4. 4× Fast Ethernet Ports
5. 1× Nano SIM Slot
6. Cudy Mesh, VPN Server & Client
7. Cudy App, Cloud Control

Specifications:

1. Version: LT500 2.0
2. CPU: 580 MHz Single-Core, MIPS24KEC
3. Flash/ROM Storage: 16 MB (128 Mbit) NOR
4. DDR/RAM: 128 MB (1 Gbit) DDR2
5. Cellular Standards: 4G Cat. 4
6. Cellular Antennas: 2× Fixed
7. SIM Options: 1× Nano SIM Slot
8. Available Versions: EU, US, AU
9. 5 GHz Wi-Fi Speed: 867 Mbps
10. 2.4 GHz Wi-Fi Speed: 300 Mbps
11. 5 GHz Wi-Fi Streams: 2 Spatial Streams
12. 2.4 GHz Wi-Fi Streams: 2 Spatial Streams
13. Wi-Fi Antennas: 2× Fixed
14. Beamforming: Yes
15. FEM or PA/LNA: 5GHz: 2× Internal | 2.4GHz: 2× Internal
16. Range Performance: Max 130m (427 ft)
17. Physical Buttons: WPS Button | Reset Button
18. 10/100Mbps RJ45 Ports: 4
19. Ethernet Notes: 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
20. LED: System | Speed/Link/ACT of Ethernet Port
21. Power: DC Jack
22. Power Adapter Input: 100-240V, 50/60Hz
23. Output: 12V=1A
24. Operating Temperature: 0 to 40℃
25. Storage Temperature: -40 to 70℃
26. Humidity: 10% to 90% non-condensing
27. Storage Humidity: 5% to 95% non-condensing
28. Installation: Desktop | Wall Mount
29. Wi-Fi Standards: Wi-Fi 5
30. Max Wi-Fi Modulation: 256-QAM
31. Wi-Fi Efficiency: MU-MIMO
32. Wi-Fi Efficiency Note: MU-MIMO on 5GHz
33. Max Capacity: 128
34. Recommended Client Upper Limit: 40
35. Max Wi-Fi Channel Width: 80 MHz
36. Wi-Fi Security: WPA/WPA2/WPA3
37. Guest Network: 2.4GHz, 5GHz
38. WPS: Yes
39. Operation Modes: Cellular Router | Wi-Fi Router | WISP
40. Mesh: Cudy Mesh Main
41. Mesh Backhaul: Wireless Backhaul | Wired Backhaul
42. Cellular Mode: 4G Only | Auto
43. WAN Mode: DHCP | Static IP | PPPOE
44. Internet Failover Sequence: WAN | WISP | Cellular
45. LED Control: Yes
46. Reliability: Timed Reboot | Backup & Restore
47. Charts: Mesh Topology | Cellular Speed | Internet Speed | WISP Speed | Wi-Fi Speed
48. Certifications: FCC, CE
