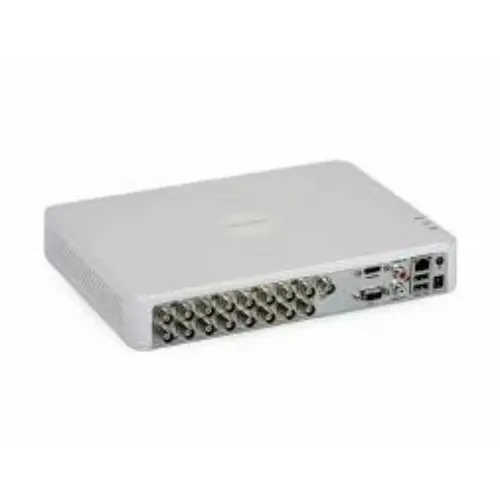

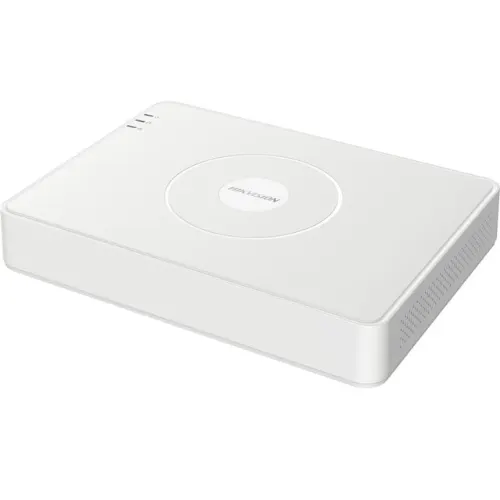

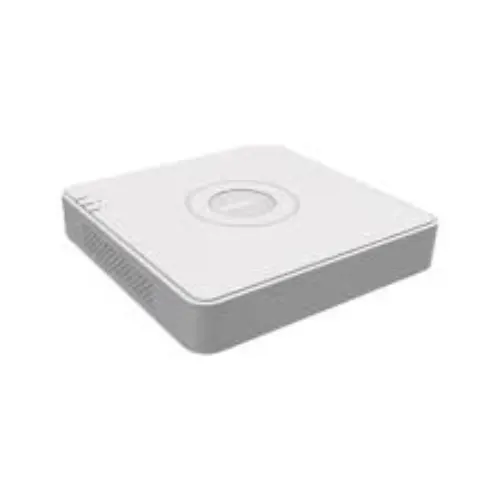

Hikvision DS-7116HGHI-M1 Turbo HD Digital Video Recorder (DVR)

1. 1 SATA HDD Interface
2. Turbo HD DVR Product Type
3. 16 Channel Video Input
4. 1080p Video Recording Resolution
5. Up to 10TB Storage Support
6. 2 x USB 2.0 USB Port
7. Dual Stream Support

Specification:

Brand: Hikvision

Model: DS-7116HGHI-M1

Product Type: Turbo HD DVR

Body Color: White

Number of Input Channel: 16 Channel

Video Input Channel: 16 Channel

Video Compression: H.265 Pro+/ H.265 Pro/ H.265

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF

HDD Interface: 1 SATA

Storage Support: Up to 10TB

USB Port: 2 x USB 2.0

CVBS Input: PAL/NTSC

Audio Input Channel(RCA): 1-ch RCA

Audio Output Channel: 1-ch, RCA (Linear, 1 K ohm)

Two way Audio: 1-ch, RCA (2.0 Vp-p, 1 K ohm) (using the first audio input)

Dual Stream Support: Yes

Network Interface: 1 x RJ45 10M/100M self-adaptive Ethernet

Remote Connections: 128

Video Recording Resolution: 1080p

Frame Rate: 30FPS

Stream Type: Main Stream, Sub steram

Power Supply: 12 VDC, 1.6 A

Power Consumption: ≤ 7 W (without HDD

Dimensions: 285 x 210 x 45mm

Weight (Kg)≤ 1.8

Warranty: 1 Year
