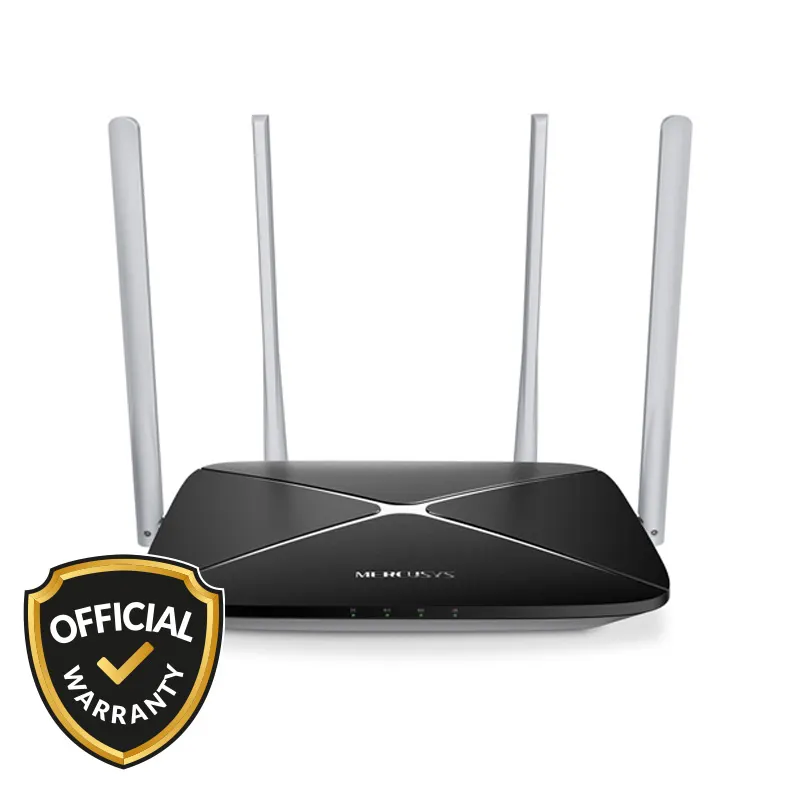

MERCUSYS AC12 AC1200 Dual-Band Wi-Fi Router

Description

Features & Specifications of MERCUSYS AC12 AC1200 Dual-Band Wi-Fi Router

Key Features:

1. Multi-Mode
2. 4 High-Gain External Antennas
3. Active Parental Controls
4. IPTV and IPv6 Supported

Specifications:

Wireless Standards:

1. IEEE 802.11a/n/ac (5 GHz), IEEE 802.11b/g/n (2.4 GHz)

Wi-Fi Speeds:

1. 4 GHz: 300 Mbps
2. 5 GHz: 867 Mbps

Frequency Range:

1. 4 – 2.5 GHz, 5.15 – 5.25 GHz

Reception Sensitivity:

1. 5 GHz: up to -92 dBm
2. 4 GHz: up to -95 dBm

Wireless Security:

1. WPA-PSK, WPA2-PSK

Wireless Functions:

1. Enable/Disable Wireless Radio, Wireless Statistics

Software Info:

1. WAN Type: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
2. Management: Access Control, Local & Remote Management
3. DHCP: Server
4. Port Forwarding: Virtual Server, UPnP, DMZ
5. Firewall Security: IP & MAC Address Binding
6. Guest Network: 2.4 GHz & 5 GHz

Ethernet Ports:

1. 3 × 10/100 Mbps LAN Ports
2. 1 × 10/100 Mbps WAN Port

Environmental Specifications:

1. Operating Temperature: 0°C to 40°C (32°F to 104°F)
2. Storage Temperature: -40°C to 70°C (-40°F to 158°F)
3. Operating Humidity: 10% to 90% Non-Condensing
4. Storage Humidity: 5% to 90% Non-Condensing

Hardware Info:

1. Buttons: WPS/Reset Button
2. Power Supply: 9V/0.85A
3. Antenna Type: 4 × 5 dBi Fixed Antennas
4. Dimensions: 222 x 140 x 32 mm
