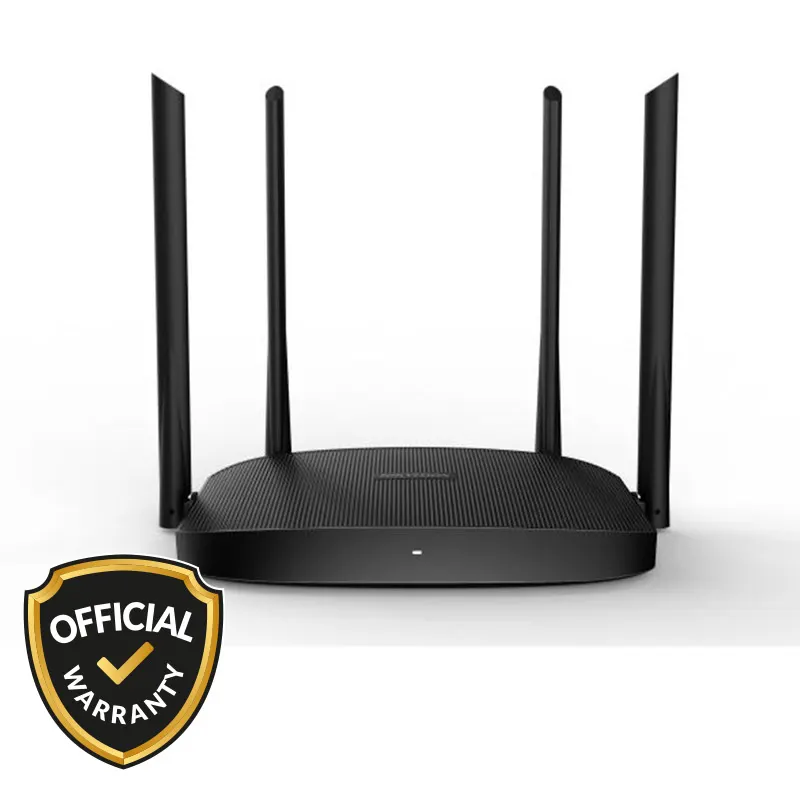

Hikvision AC1200 Wireless Router (DS-3WR12C)

Description

Key Features & Specifications of Hikvision AC1200 Wireless Router (DS-3WR12C)

Key Features:

1. Dual High-Gain 5dBi Antennas
2. Multiple Device Connectivity
3. User-Friendly Interface
4. Secure Encryption

Specifications:

General:

1. Working Temperature: 0 ℃ to 40 ℃
2. Working Humidity: 10% to 90% RH non-condensing
3. Storage Temperature: -40 ℃ to 70 ℃
4. Storage Humidity: 5% to 90% RH non-condensing
5. Installation Mode: Desktop installation

Wireless Parameter:

1. Data Rate: ≤ 1167 Mbps | 2.4 GHz: 300 Mbps | 5 GHz: 867 Mbps
2. Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
3. Working Frequency Band: 2.4 GHz，5 GHz
4. Transmitting Power: <20 dBm(2.4G) | <23 dBm(5G)
5. Wireless Performance: 4 × 4 MU-MIMO supported
6. Receiving Sensitivity: 58 ± 2 dB@AC80 -MCS9 | 84 ± 2 dB@AC80 -MCS0
7. Antenna: 4 high-gain antennas
8. Operating Frequency: 2.4 GHz: US/2412-2472 MHz(CH1-CH13) | 5 GHz: US/5180-5240 MHz(CH36-CH48) | 5 GHz: US/5740-5805 MHz(CH149-CH161)
9. EIRP Power(Max.): 2.4 GHz: 19.86 dBm | 5 GHz: 22.96 dBm

Hardware Parameter:

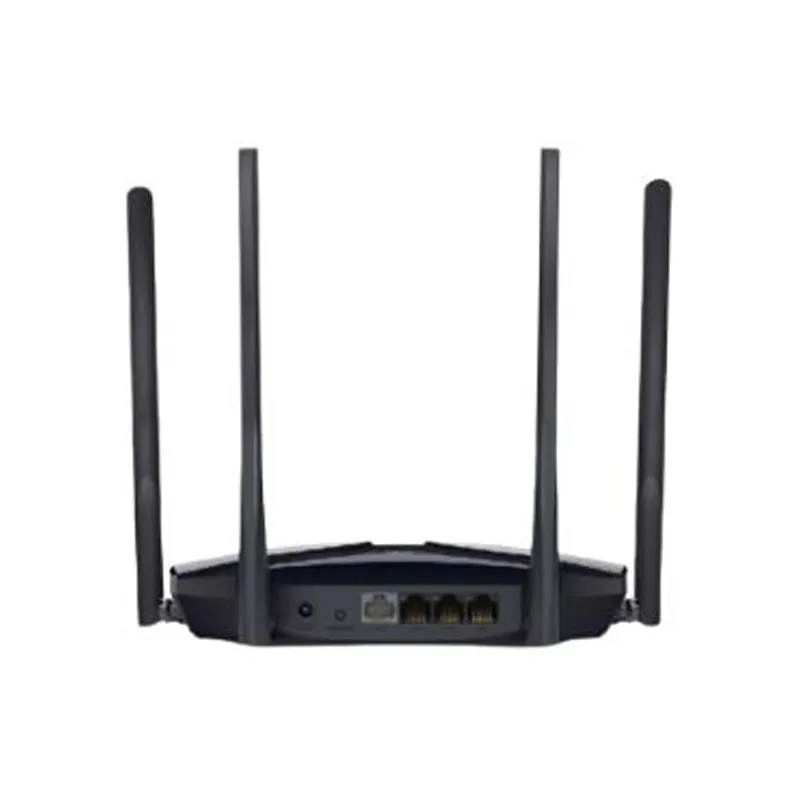

1. Network Interface: 1*10/100Mbps WAN port 3*10/100Mbps LAN ports
2. LED Indicator: Yes
3. Reset button: Yes
4. Power Supply Method: 9 VDC, 1 A power adapter power supply
5. Power Specifications: 9 VDC, 1 A

Software Function:

1. Application Function: Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported, DHCP Server, Guest Network Configuration supported, Signal Adjustment supported, WiFi Schedule supported
2. Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
3. Security Mechanism: Hide SSID
4. Management Method: Web
5. Upgrade: Web Update and Upgrade
