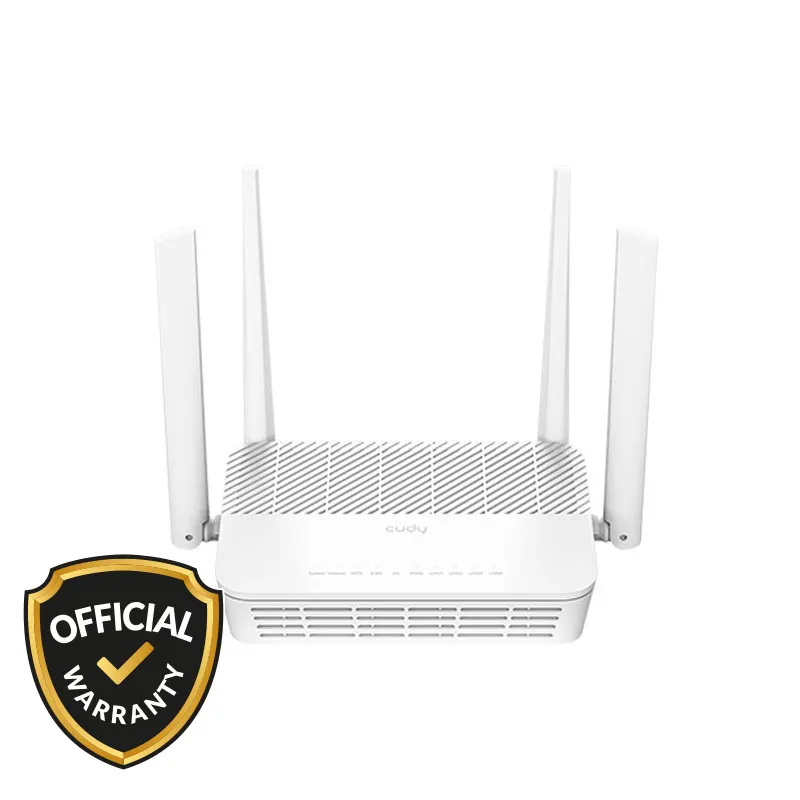

Cudy WR3000S AX3000 Gigabit Mesh Wi-Fi 6 Router

Description

Features & Specifications of Cudy WR3000S AX3000 Gigabit Mesh Wi-Fi 6 Router

Key Features:

1. Wi-Fi 6 Technology
2. Dual-Band Speeds
3. Powerful Performance
4. Mesh Wi-Fi
5. High-Capacity Network
6. Beamforming & High-Gain Antennas
7. 5 Gigabit Ethernet Ports
8. VPN Server & Client
9. Advanced Security
10. Multiple Operation Modes
11. Smart Management

Specifications:

Wireless:

1. Wi-Fi Standard: Wi-Fi 6 (802.11ax)

Dual-Band Speed:

1. 5 GHz: 2402 Mbps (3×3 MIMO)
2. 4 GHz: 574 Mbps (2×2 MIMO)
3. Antenna: 4× Fixed, 5.3 dBi Gain
4. Beamforming: Yes
5. Max Wi-Fi Channel Width: 160 MHz
6. Max Clients: 512 (Recommended: 200)
7. Guest Network: 2.4 GHz & 5 GHz

Hardware:

1. CPU: 1.3 GHz Dual-Core, ARM Cortex-A53
2. Memory: 256 MB DDR3 RAM, 128 MB NAND Flash
3. Ethernet Ports: 5× Gigabit (1× WAN, 4× LAN)
4. Buttons: WPS, Reset
5. LED Indicators: System, Internet, WPS, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, WAN, LAN
6. Power Input: 12V 1A DC
7. Max Power Consumption: 7.5W

Security & Networking:

1. Wi-Fi Security: WPA/WPA2/WPA3
2. Firewall: SPI, DoS Protection, Block PING
3. VPN Support: WireGuard, OpenVPN, IPSec, PPTP, L2TP, Zerotier
4. Port Forwarding: Yes (Port Triggering, UPnP, DMZ)
5. QoS: Per-User Rate Limiting
6. IP Versions: IPv4/IPv6

Management & Utility:

1. Control Methods: Web UI, App, Remote HTTPS
2. Firmware Updates: Local, App (OTA), Online
3. Mesh Backhaul: Wireless & Wired
4. Captive Portal: Yes
5. Wake on LAN: Yes
6. Diagnostic Tools: Ping, Traceroute, NSLookup

Physical & Environmental:

1. Installation: Desktop / Wall-Mount
2. Dimensions: 173 × 123.8 × 33 mm
3. Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
4. Humidity: 10% ~ 90% (non-condensing)
