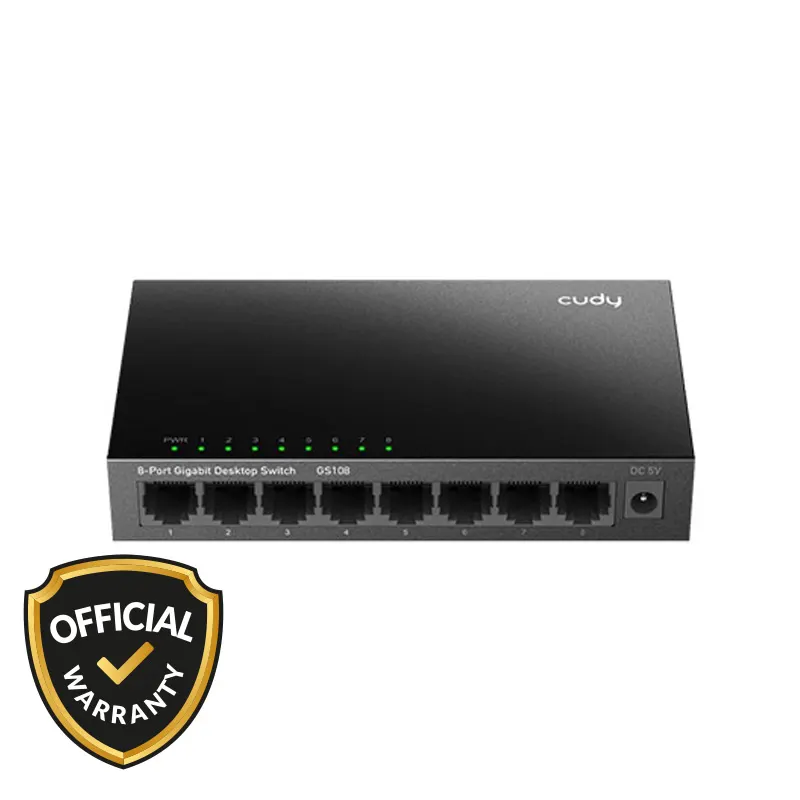

Cudy GS108 8 Port Gigabit Desktop Switch

Description

Features & Specifications of Cudy GS108 8 Port Gigabit Desktop Switch

Key Features:

1. Gigabit RJ45 Ports
2. Extended Gigabit Reach
3. IGMP Snooping
4. Loop Prevention
5. Metal Casing
6. Energy Efficient
7. Lightning & ESD Protection
8. Wall-Mount & Desktop Installation
9. Plug & Play

Specifications:

Hardware & Design:

1. Ports: 8× Gigabit RJ45 Ethernet Ports
2. LED Indicators: Power, Speed/Link/ACT for each port
3. Casing Material: Metal
4. Installation: Desktop / Wall-mount

Network Performance:

1. Standards: IEEE 802.3i (10BASE-T) | IEEE 802.3u (100BASE-T) | IEEE 802.3ab (1000BASE-T) | IEEE 802.3x (Flow Control)
2. MAC Address Table: 8,192 entries
3. Max Switching Capacity: 16 Gbps
4. Max Forwarding Rate: 11.904 Mpps
5. Jumbo Frame Support: 15 KB
6. Packet Buffer: 4 Mbit

Cable Requirements & Speed Distance:

1. 10 Mbps: Cat 3 or higher (100m)
2. 100 Mbps: Cat 5 or higher (100m)
3. 1 Gbps: Cat 5e or higher (170m)

Power & Energy Efficiency:

1. Power Input: DC 5V 0.55A
2. Max Power Consumption: 2.75W
3. Idle Power Consumption: 2.2W
4. Energy-Saving Mode: Yes

Reliability & Protection:

1. Lightning/Surge Protection: 2kV
2. ESD Protection:
3. Contact: 4kV
4. Air: 8kV

Additional Protections:

1. Radiated Immunity
2. EFT Protection
3. CS & DIP Compliance

Environmental Conditions:

1. Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
2. Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
3. Operating Humidity: 10% ~ 90% (non-condensing)
4. Storage Humidity: 5% ~ 90% (non-condensing)

Physical Specifications:

1. Dimensions: 138 × 78 × 25 mm
