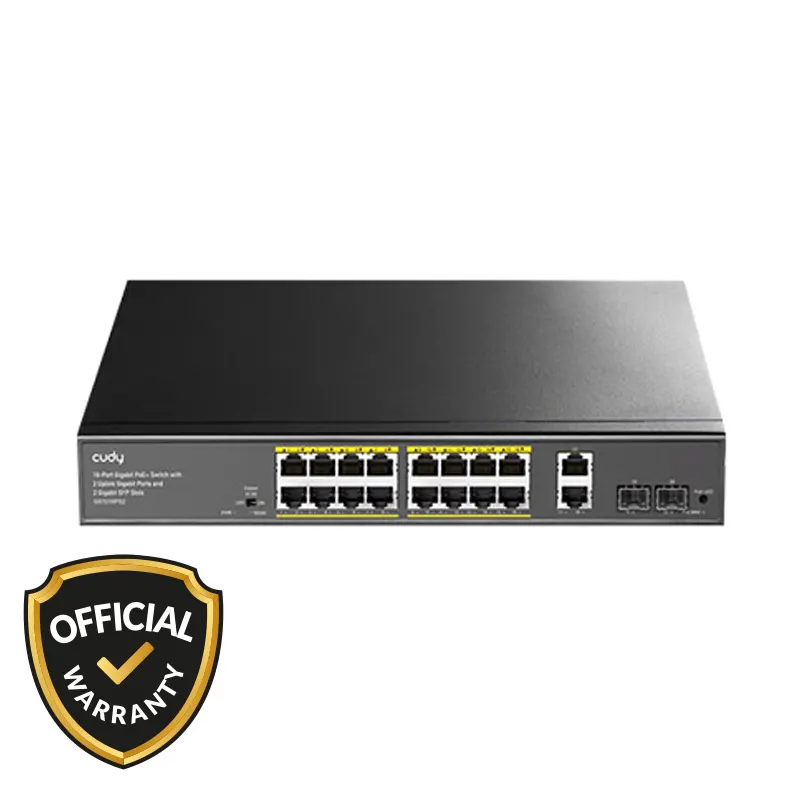

Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP

Description

Features & Specifications of Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP

Key Features:

1. Maximum 30W per port
2. Provides stable high speed uplinks
3. long-distance expansion
4. Extend Mode
5. PoE Watchdog
6. Metal Rackmount Design
7. Fanless Silent Cooling
8. Surge & ESD Protection
9. Plug & Play

Specifications:

Ports:

1. 16× Gigabit PoE+ RJ45 Ports (802.3af/at, max 30W per port)
2. 2× Gigabit RJ45 Uplink Ports
3. 2× 1.25G SFP Slots

Physical Buttons:

1. Default/Extend DIP Switch
2. LED Indicators

Network Performance:

1. Standards: IEEE 802.3i (10BASE-T) | IEEE 802.3u (100BASE-T) | IEEE 802.3ab (1000BASE-T) | IEEE 802.3z (1.25 Gbps over Fiber) | IEEE 802.3x (Flow Control) | IEEE 802.3af (PoE) | IEEE 802.3at (PoE)
2. MAC Address Table: 8,192 entries
3. Max Switching Capacity: 40 Gbps
4. Max Forwarding Rate: 29.76 Mpps
5. Packet Buffer: 3 Mbit

PoE & Power:

1. Power: Speed/Link/ACT of each Ethernet port | Extend Mode Status
2. Power Input: AC 100-240V, 50/60Hz
3. PoE Budget: 200W total
4. Max Power on a Single Port: 30W
5. Max Power Consumption: 200W (including PoE devices)
6. Max Power (excluding PoE): 10W

Cable Requirements & Speed Distance:

1. 10 Mbps: Cat 3 or higher (100m)
2. 100 Mbps: Cat 5 or higher (100m)
3. 1 Gbps: Cat 5e or higher (100m)
4. Extended Mode (10 Mbps): 250m on Cat 5e or higher (Ports #9-16)

Reliability & Protection:

1. Grounding: Three-Prong Plug
2. Surge Protection: 4kV lightning protection

ESD Protection:

1. 6kV Contact
2. 8kV Air

Environmental Protections:

1. Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
2. Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
3. Operating Humidity: 10% ~ 90% (non-condensing)
4. Storage Humidity: 5% ~ 95% (non-condensing)

Physical Specifications:

1. Casing Material: Metal
2. Installation: Desktop / Rackmount (brackets included)
3. Dimensions: 320 × 207 × 44 mm
