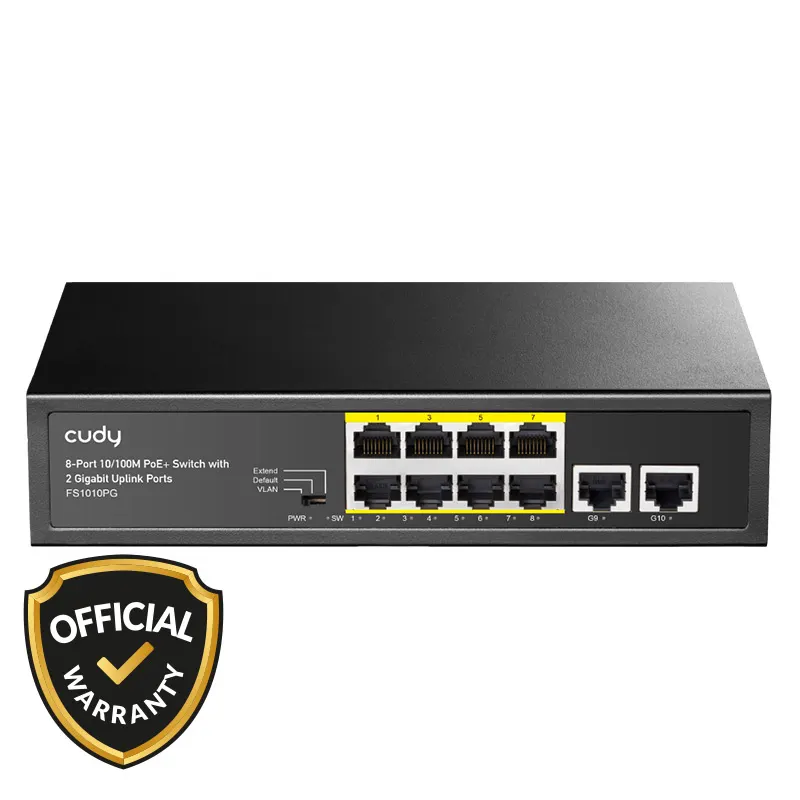

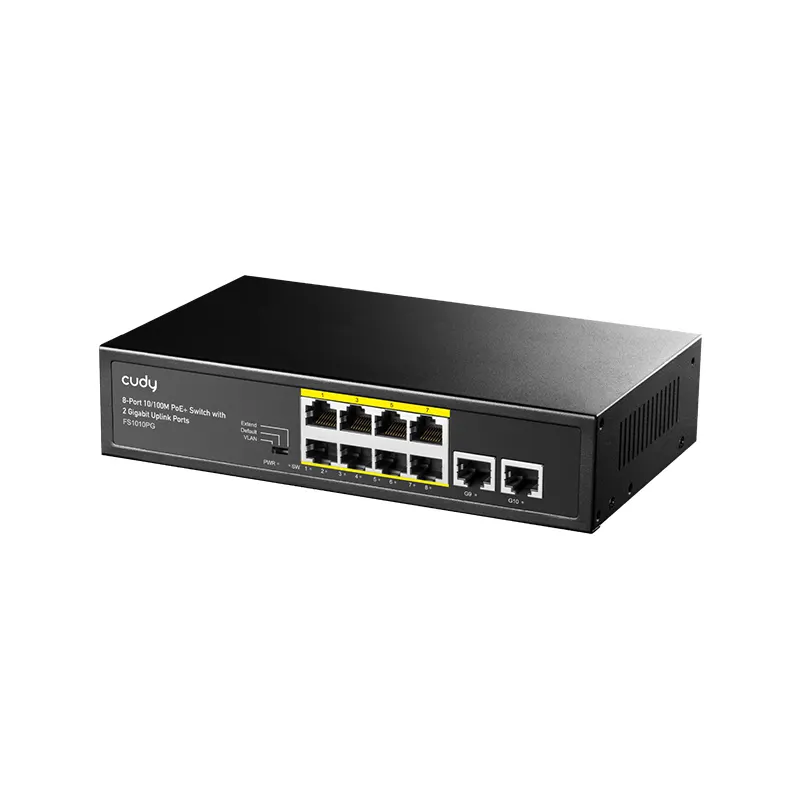

Cudy FS1010PG Desktop Switch

Description

Features and Specifications of Cudy FS1010PG 8-Port 10/100M PoE+ Switch with 2 Uplink Ports

Key Features:

1. Support IEEE802.3at and IEEE802.3af Standard
2. 120W PoE power output totally up to 32W for one PoE port
3. Support IEEE802.3x full duplex and half duplex flow control
4. Support VLAN and CCTV Function
5. Panel lights to monitor the working state and help with fault analysis
6. Perfect security mechanism
7. Line-speed forwarding intelligent identification

Specifications:

1. PoE standard: IEEE802.3af/at
2. Interface: 10*10/100Mbps The RJ45 port through consultation
3. Key function: CCTV&VLAN
4. PoE port: 1~8 port
5. PoE Total: 120W
6. Power supply: 120W
7. RJ45 PoE power supply: Mode A - Anode1/2, Cathode3/6
8. PoE output-port: Max 32W
9. Indicator: PWR, LNK/ACT, PoE
10. Network media: 10BASE-T: UTP category 3, 4, 5 cable (≤100m) | 100BASE-TX: UTP category 5, 5e cable (≤100m)
11. MAC Address Table: 8K, Automatic study, automatic updates
12. Jumbo frame: 1528Bytes
13. Packet buffer: 2M bit
14. Transfer Mode: Store-and-forward
15. Packet forwarding rate: 1.48Mpps
16. Bandwidth: 2M bit
17. Fan: Fanless
18. Device Dimension: 22015044mm
19. Green energy saving: Support IEEE (802.3az)
20. Mains Input: 100~240V AC, 50/60Hz
21. Operating Temperature: 0°C ~ 40°C
22. Storage Temperature: -40°C ~ 70°C
23. Operating Humidity: 10% ~ 90% non-condensing
24. Storage Humidity: 5% ~ 90% non-condensing
25. Surge Protection: ±4KV
26. MTBF: >50000 hour
27. Electrostatic standard: Contact 4KV, air 6KV
28. Weight: >1kg
