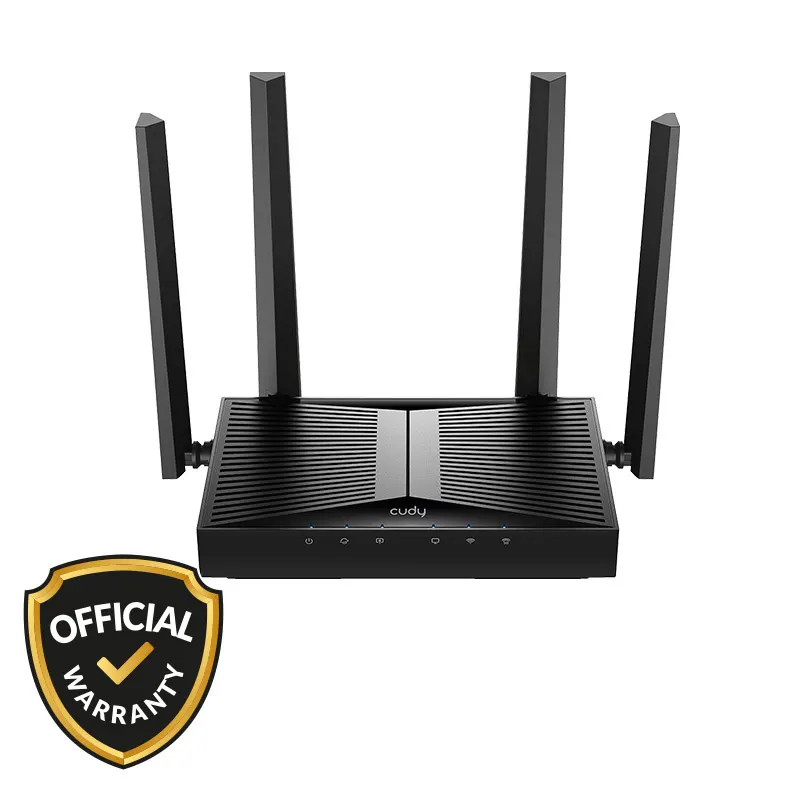

Cudy WR3600 BE3600 Gigabit Mesh Wi-Fi 7 Router

Description

Key Features & Specifications of Cudy WR3600 BE3600 Gigabit Mesh Wi-Fi 7 Router

Key Features:

1. Wi-Fi 7 Technology
2. Dual-Band Speeds
3. Powerful Performance
4. High-Capacity Network
5. Connect Up to 200 Device
6. 5 Gigabit Ethernet Ports
7. VPN Server & Client
8. Advanced Security
9. Multiple Operation Modes
10. Smart Management

Specifications:

CPU:

1. Chipset: BCM6764
2. CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7

Storage:

1. Flash/ROM: 128 MB (1 Gbit) NAND
2. DDR/RAM: 512 MB (4 Gbit) DDR3L

Wireless:

1. 5 GHz Wi-Fi Speed: 2882 Mbps
2. 4 GHz Wi-Fi Speed: 688 Mbps
3. 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
4. 4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
5. Wi-Fi Antennas: 4× Fixed
6. 5 GHz Antenna Gain Max: 5.5dBi
7. 4 GHz Antenna Gain Max: 5.4dBi
8. FEM or PA/LNA: 5 GHz: 2× External | 2.4 GHz: 2× Internal
9. Beamforming: True
10. Range Performance Max: 220 m (722 ft)
11. Wall Performance: Two wooden walls with Thickness < 10 cm (4'')

Interfaces:

1. Gigabit RJ45 Ports: 5
2. Ethernet Notes: 1× WAN port, the rest are LAN ports
3. LED: Power | Internet | WAN | LAN | 2.4 GHz Wi-Fi | 5 GHz Wi-Fi
4. Physical Buttons: WPS Button | Reset Button

Power:

1. Power Methods: DC
2. DC: 12V 1A
3. Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
4. Power Adapter Output: 12V 1A DC
5. Max Power Consumption (W): 9W

Reliability:

1. Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
2. Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
3. Humidity: 10% ~ 90% non-condensing
4. Storage Humidity: 5% ~ 95% non-condensing
