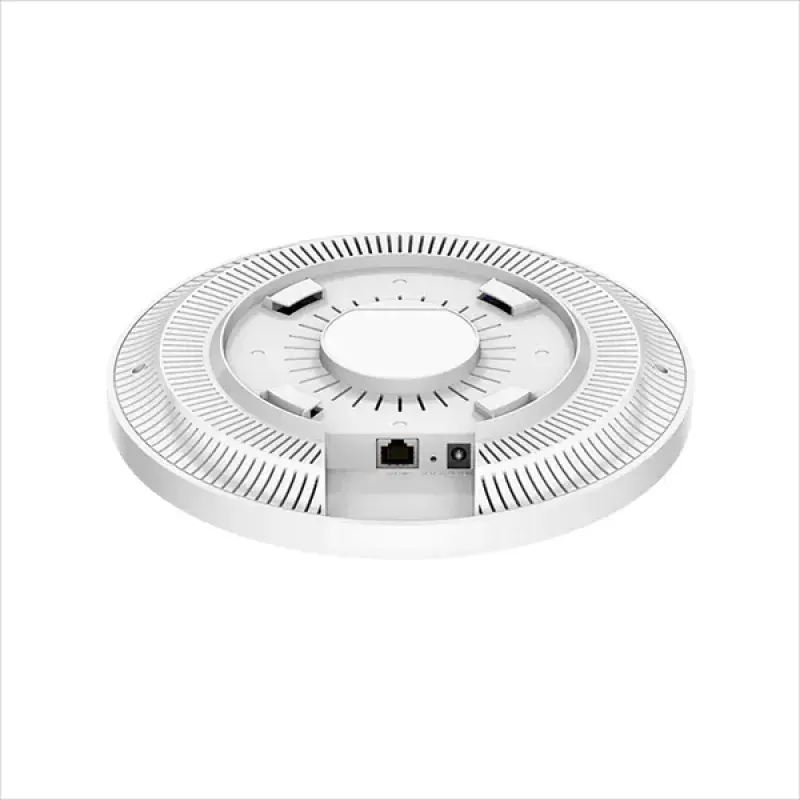

Cudy AP3000 Indoor AX3000 2.5G Wi-Fi 6 Access Point

Description

Key Features & Specifications of Cudy AP3000 Indoor AX3000 2.5G Wi-Fi 6 Access Point

Key Features:

1. 3 GHz Dual-Core CPU, 512MB RAM
2. 4-Stream Dual-Band Wi-Fi 6 (2402 Mbps + 574 Mbps)
3. 1× Shielded 2.5GbE PoE In
4. 3at, Passive PoE, DC
5. Up to 300 Connected Devices
6. Covers up to 130 m² (1,400 ft²)

Specifications:

CPU:

1. Chipset: MT7981BA
2. CPU Details: 1.3 GHz Dual-Core CPU

Storage:

1. Flash/ROM: 256 MB (2 Gbit) NAND
2. DDR/RAM: 512 MB (4 Gbit) DDR4

Wireless:

1. 5 GHz Wi-Fi Speed: 2402 Mbps
2. 4 GHz Wi-Fi Speed: 574 Mbps
3. 5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO)
4. 4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
5. Wi-Fi Antennas: 5× Internal
6. 5 GHz Antenna Gain Max: 5.6dBi
7. 4 GHz Antenna Gain Max: 4.8dBi
8. FEM or PA/LNA: 5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power
9. Beamforming: True
10. Range Performance Max: 200 m (656 ft)
11. Wall Performance: Two wooden walls with Thickness < 10 cm (4'')

Interfaces:

1. 5G RJ45 Ports: 1
2. Ethernet Notes: Accepts PoE powering
3. LED: System
4. Physical Buttons: Reset Button

Power:

1. Power Methods: DC
2. DC: 12V 1.5A
3. Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
4. Power Adapter Output: 12V 1.5A DC
5. Max Power Consumption (W): 12W

Reliability:

1. Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉)
2. Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
3. Humidity: 10% ~ 90% Non-condensing
4. Storage Humidity: 5% ~ 90% Non-condensing
