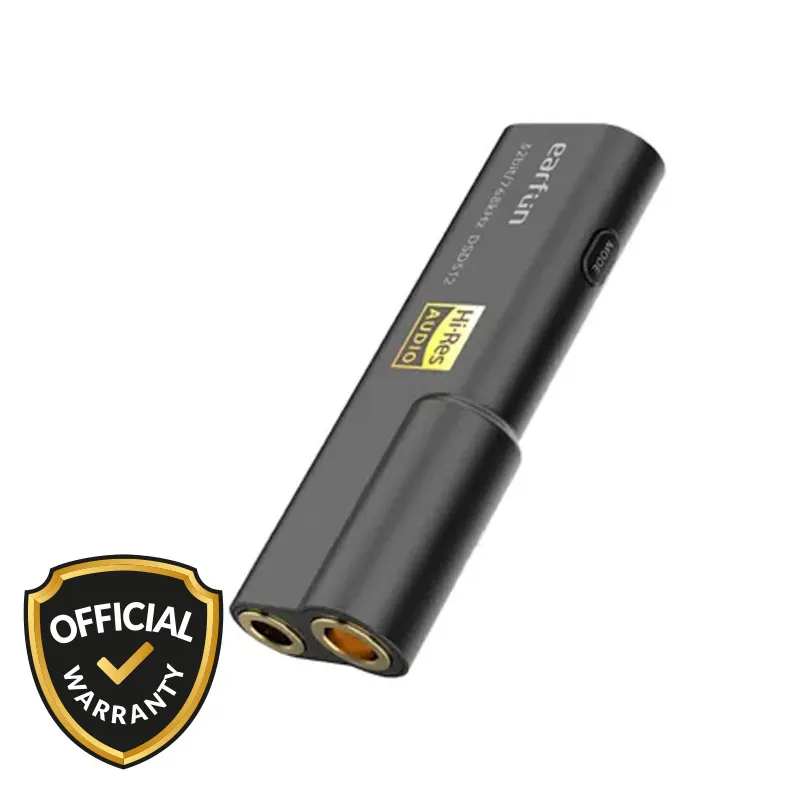

EarFun UA100 Ultimate Hi-Res Portable USB DAC

Description

Product details of EarFun UA100 Ultimate Hi-Res Portable USB DAC

Features:

1. Deliver superior sound quality and works with various OS
2. ES9038Q2M DAC Chip & Dual RT6863 Amp Chip supports 32bit/768kHz and DSD512, with a high signal-to-noise ratio and 195mW@32Ω output power
3. Equipped with 3.5mm SE and 4.4mm BAL headphone jacks for standard and balanced stereo sound
4. Utilizes CT7601 USB Audio transmission chip ensuring compatibility without delays
5. Advanced voltage regulator provides noise-free, high-fidelity sound experience
6. LED Indicator provides true DSD playback and connection confirmation to gaming consoles

Specifications:

1. System: Compatible with Android, iOS, Windows and Mac OS
2. USB Audio Class: 2.0 and 1.0
3. Digital Audio: PCM support up to 32bit/768kHz, DSD support up to DSD512
4. Dimensions: 50mm x 18mm x 10mm
5. Weight: 10.6g

3.5mm single-end output:

1. Output power: 2V, 32Ω (125mW)
2. Frequency response: 20HZ~40kHz / -0.5dB
3. THD+N: <0.0008%
4. Signal to noise ratio: 121dB (A-Weighting)
5. Cross talk: 71dB
6. Support headphone impedance: 16Ω~300Ω

4.4mm balanced output:

1. Output power: 2.5V, 32Ω (195mW)
2. Frequency response: 20HZ~40kHz / -0.5dB
3. THD+N: <0.0008%
4. Signal to noise ratio: 117dB (A-Weighting)
5. Cross talk: 109dB
6. Support headphone impedance: 16Ω~300Ω
