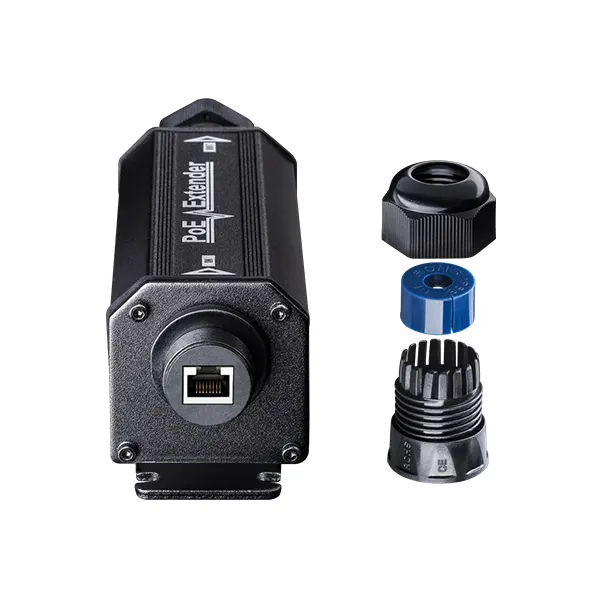

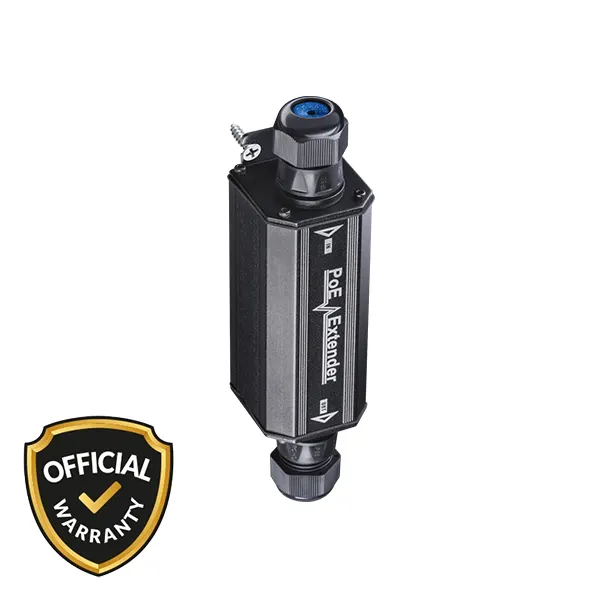

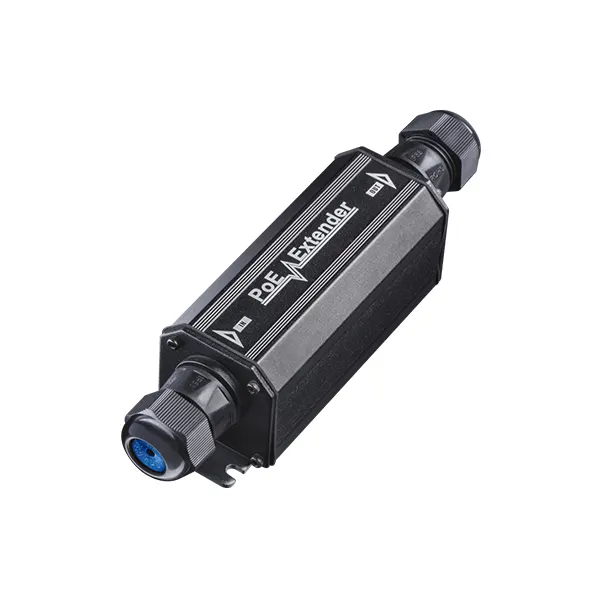

Cudy Outdoor Gigabit PoE+ Extender (POE15)

Description

Key Features & Specifications of Cudy Outdoor Gigabit PoE+ Extender (POE15)

Key Features:

1. IP67-Rated, -25 to 55°C
2. GbE In, GbE Out
3. 802.3at/af Input
4. 802.3at/af Max 30W Output
5. Wall-Mount

Specifications:

1. Version: POE15 1.0
2. 802.3 Protocols: 802.3i 10 Mbps over Twisted Pair | 802.3u 100 Mbps over Twisted Pair | 802.3ab 1 Gbps over Twisted Pair | 802.3x Flow Control | 802.3af PoE | 802.3at PoE
3. PoE Uplink Stream: 1× GbE, 802.3at/af
4. Uplink PIN Assignment: Mode A / Mode B
5. Downlink Stream: 1× GbE, 802.3at/af
6. Downlink Pin Assignment: Mode A
7. Transmission Distance: Cat. 5e or higher cable-100 Meters at Gigabit
8. Power Interface: PoE via Ethernet Port
9. Power Methods: 802.3at/af PoE
10. Other Input Requirements: ≥30W recommended
11. Max Power Output: 30W
12. Max Power Consumption: 2W
13. Power Protection: Polarity Protection | Overvoltage Protection | Short-Circuit Protection | Automatic Voltage Regulation
14. EMC: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
15. Grounding Methods: Grounding Point
16. Operating Temperature: -25 to 55°C
17. Storage Temperature: -40 to 70°C
18. Humidity: 10% to 100% non-condensing
19. Storage Humidity: 5% to 95% non-condensing
20. Install in a Daisy Chain: Up to 3 Extenders
21. Installation: Desktop | Wall-mount
22. Casing Material: Metal
23. Ingress Protection Rating: IP67
24. Certifications: FCC, CE
