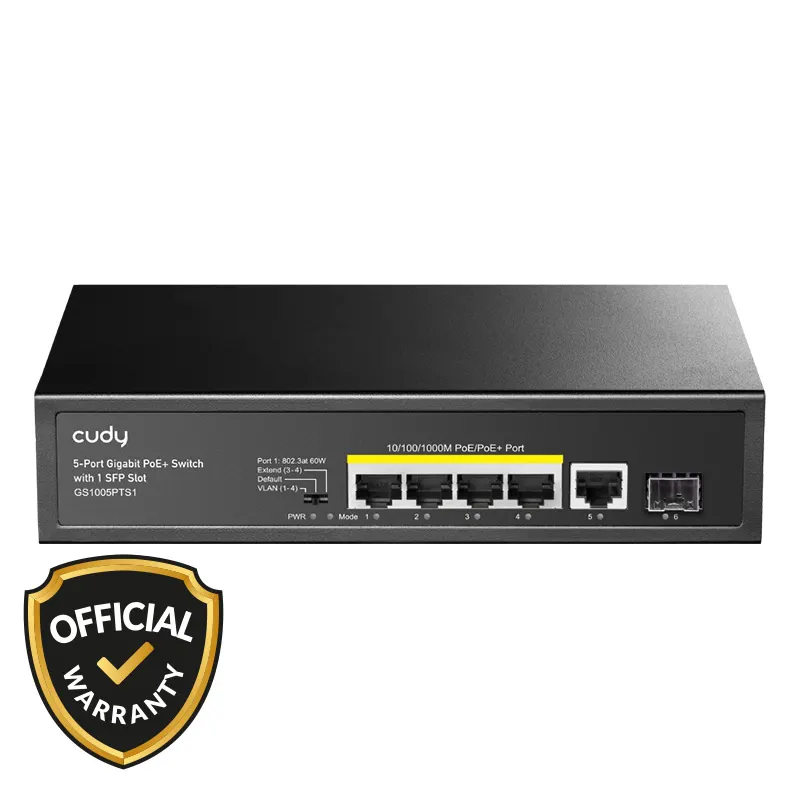

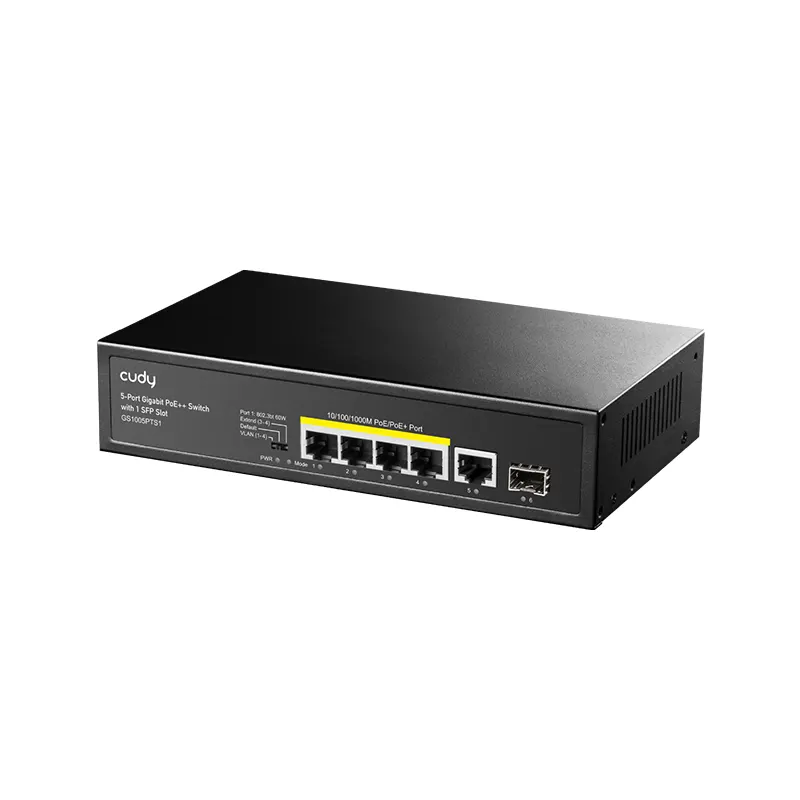

Cudy GS1005PTS1 5 Port Gigabit PoE+ Switch with 1 SFP Slot

Description

Features and Specifications of Cudy GS1005PTS1 5 Port Gigabit PoE+ Switch with 1 SFP Slot

Key Features:

1. 120 watts PoE power supply
2. 4 Gigabit PoE+ ports and 1 Gigabit Ethernet ports+1Gigabit SFP
3. Extend mode support remote PoE feeding up to 250m
4. VLAN mode isolates each PoE Ports for security
5. Watchdog reactivates the abnormalPD by resuming POE power
6. IEEE 802.3at / IEEE 802.3af standard compliant
7. Plug&play, simple setup with no configuration needed

Specifications:

General:

1. Switching Capacity: 12Gbps
2. Throughput: 8.928Mpps
3. Packet Buffer: 1Mb
4. MAC Address: 2K
5. Jumbo Frame: 9216bytes
6. Transfer Mode: Store and forward
7. MTBF: 100000 hour

Ethernet Ports:

1. 4*10/100/1000M PoE Port
2. 1*1000M RJ45 Port
3. 1* Gigabit SFP Uplink Port

Network protocols:

1. 3 (10Base-T)
2. 3u (100Base-TX)
3. 3ab (1000Base-TX)
4. 3z (1000Base-FX)
5. 3x (Flow control)

PoE Protocols:

1. 3af (15.4W)
2. 3at (30W)
3. 3at (4 Pair 60W)

Network Medium:

1. 10Base-T: Cat3, 4, 5 or above UTP (≤100m)
2. 100Base-TX: Cat5 or above UTP (≤100m)
3. 1000Base-TX: Cat5 or above UTP (≤100m)

Optical Media:

1. Multimode fiber: 50/125, 62.5/125, 100/140μm
2. Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Working Environment:

1. Working Temperature: -20~50°C
2. Storage Temperature: -40~85°C
3. Working Humidity: 10%~90%, non-condensing
4. Storage Temperature: 5%~90%, non-condensing
5. Working Height: Maximum 10,000 feet
6. Storage Height: Maximum 10,000 feet

PWR (power supply):

1. Lighting: Powered
2. Un-Light: No Power

Mode (DIP):

1. Lighting: VLAN
2. Un-Light: Default
3. Flashing: Extend

Gree (Link&Data) (1-6):

1. Lighting: Connecting
2. Flashing: Data Transmit
3. Un-Light: Disconnect

DIP Switch:

1. VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
2. Default: In normal mode, all ports can communicate with each other, and the transmission distance is within 100 meters
3. Extend: Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Dimension and Weight:

1. Dimension: 20011844mm
2. Weight: 0.6kg
