BOYA BY-WMic5-M2 Ultracompact 2.4GHz Dual-Channel Wireless Microphone System

BOYA BY-WMic5-M2 Ultracompact 2.4GHz Dual-Channel Wireless Microphone System Specifications

Key Features:

1. Ultracompact & portable
2. Dual-channel recording
3. Plug & play
4. Universal compatibility
5. Noise cancellation
6. Real-time monitoring

Specifications:

Transmitter:

1. Transmission Type: 2.4GHz ISM Frequency
2. Modulation: GFSK
3. Operating Range: Up to 196 ft (60 m) (without obstacle)
4. RF Output Power: <10mW
5. Polar Pattern: Omnidirectional
6. Frequency Response: 20Hz-20KHz
7. Maximum SPL: 120dB SPL
8. Sensitivity: -39±2dB
9. SNR: >78dB
10. Power Requirements: Built-in Li-ion Battery or USB-C DC 5v
11. Battery Voltage / Capacity: 3.7V / 180mAh
12. Built-in Battery Life: Approx. 10 hours
13. Operating Temperature: -10℃ to 50℃
14. Storage Temperature: -20℃ to +60℃
15. Antenna: PIFA
16. Audio Input: Built-in Microphone
17. Dimensions: 45.9x23.9x15 mm
18. Weight: Approx. 14.5 g (0.5 oz)

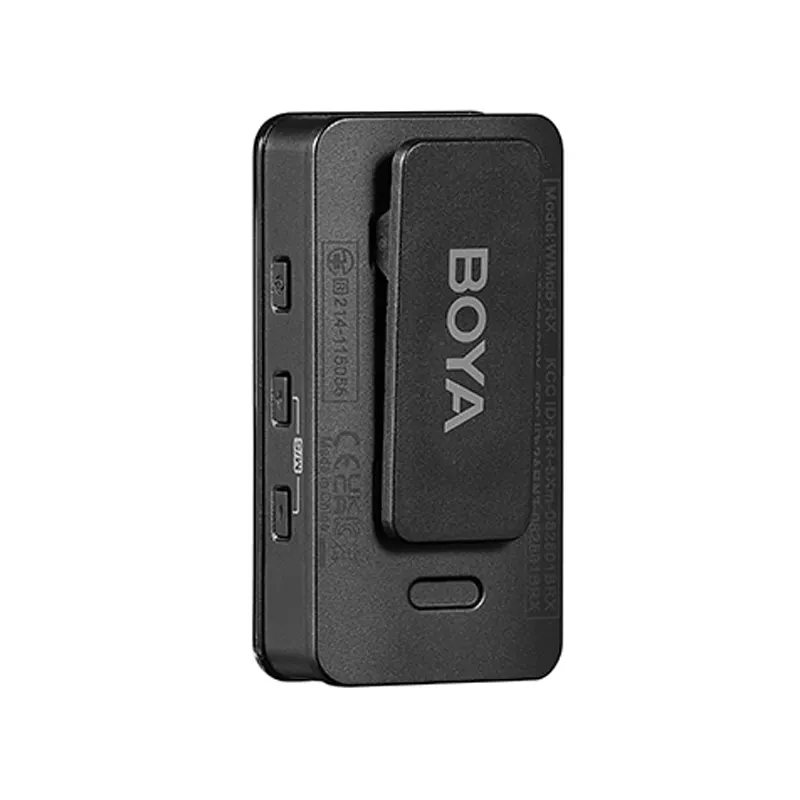

Receiver:

1. Transmission Type: 2.4GHz ISM Frequency
2. Modulation: GFSK
3. Operating Range: Up to 196 ft (60 m) (without obstacle)
4. RF Output Power: <10mW
5. Power Requirements: Built-in Li-ion Battery or USB-C DC 5v
6. Battery Voltage / Capacity: 3.7V / 400mAh
7. Built-in Battery Life: Approx. 20 hours
8. Antenna: PIFA
9. Operating Temperature: -10℃ to 50℃
10. Storage Temperature: -20℃ to +60℃
11. Audio Output: 3.5 mm Headphone Jack; 3.5 mm TRS Output Jack
12. Dimensions: 62.1×31.6x16.5 mm
13. Weight: Approx. 32 g (1.1 oz)
