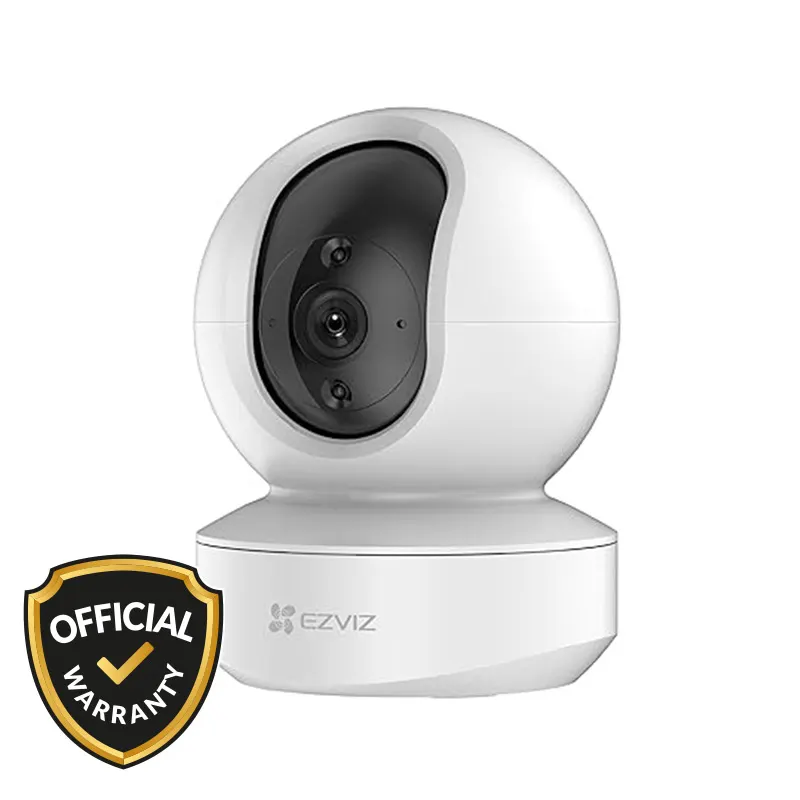

EZVIZ Security Indoor Camera (TY1)

EZVIZ Security Indoor Camera (TY1)

General

Description

Features & Specifications of EZVIZ Security Indoor Camera (TY1)

Key Features:

1. Smart Wi-Fi Pan & Tilt
2. Zero Blind Spots
3. Smart Tracking
4. Communication any time
5. See Further in the Dark

Specifications:

Camera:

1. Image Sensor: 1/3" Progressive Scan CMOS
2. Shutter Speed: Self-adaptive shutter
3. Lens: 4mm @ F2.4, 85° diagonal, 75° horizontal, 45° vertical
4. Lens Mount: M12
5. Day & Night: IR-cut filter with auto-switching
6. DNR: 3D DNR
7. WDR: Digital WDR

Compression:

1. Video Compression: H.264
2. Video Bit Rate: Full HD, HD, Standard (Adaptive bit rate)

Image:

1. Resolution: 1920 × 1080
2. Frame Rate: Max 15fps (Self-adaptive during network transmission)

Network:

1. Smart Alarm: Motion detection
2. Wi-Fi Pairing: AP pairing
3. Protocol: EZVIZ Cloud proprietary protocol

Interface:

1. Storage: Micro SD card slot (Up to 256GB)
2. Power: Micro USB
3. Wired Network: 1 × RJ45 (10M/100M self-adaptive Ethernet port)

Wi-Fi:

1. Standard: IEEE 802.11b/g/n
2. Frequency Range: 2.4 GHz ~ 2.4835 GHz
3. Channel Bandwidth: 20MHz
4. Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
5. Transmission Rate: 11b: 11Mbps | 11g: 54Mbps | 11n: 72Mbps

Operating Environment:

1. Temperature: -10°C to 45°C (14°F to 113°F)
2. Humidity: 95% or less (non-condensing)

General:

1. Power Supply: DC 5V/1A
2. Power Consumption: 5W max
3. IR Range: Up to 10 meters (32.81 ft)
4. Dimensions: 88 × 88 × 118.7mm
5. Weight: About 259g
