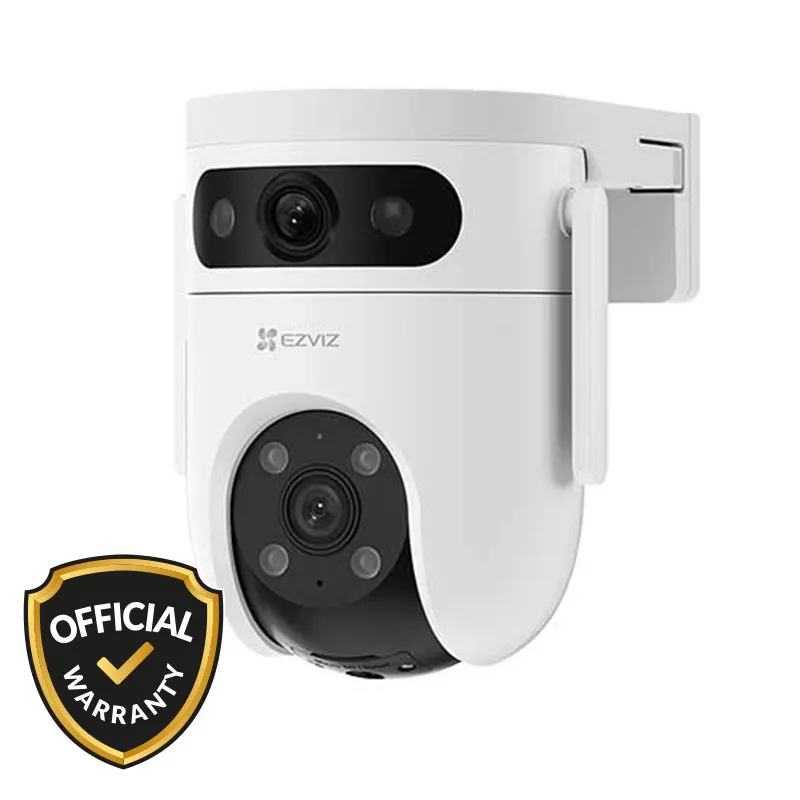

EZVIZ CS-H9C 3MP Outdoor Color Night Vision Dual-Lens Pan & Tilt Wi-Fi Camera

EZVIZ CS-H9C 3MP Outdoor Color Night Vision Dual-Lens Pan & Tilt Wi-Fi Camera

General

Description

Features & Specifications of EZVIZ CS-H9C 3MP Outdoor Color Night Vision Dual-Lens Pan & Tilt Wi-Fi Camera

Key Features:

1. Anti-Flicker
2. Dual-Stream
3. Heart Beat
4. Password Protection
5. Watermark

Specifications:

Camera:

1. Image Sensor: 1/2.7″ Progressive Scan CMOS
2. Shutter Speed: Self-Adaptive Shutter

Lens:

1. Fix Lens: 2.8mm @ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, Vertical 58°
2. Pan & Tilt Lens: 6mm @ F1.6, viewing angle: Diagonal 64°, Horizontal 56°, Vertical 29°
3. PT Angle: Pan: 350°, Tilt: 80°
4. Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR
5. Lens Mount: M12
6. Day & Night: IR-cut filter with auto-switching
7. DNR: 3D DNR
8. WDR: Digital WDR
9. Black & White Night: 30m / 98ft
10. Max Resolution: 2880 × 1620
11. Frame Rate: Max: 15fps; Self-Adaptive during network transmission
12. Video Compression: H.265 / H.264
13. 265 Type: Main Profile
14. Video Bit Rate: Ultra-HD | Hi-Def; Standard. Adaptive bit rate.
15. Audio Bit Rate: Self-Adaptive

Network:

1. Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
2. Frequency Range: 2.4 GHz ~ 2.4835 GHz
3. Channel Bandwidth: Supports 20MHz
4. Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
5. Wi-Fi Pairing: AP pairing
6. Protocol: EZVIZ cloud proprietary protocol
7. Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
8. Security : WPA-PSK/WPA2-PSK

Functions:

1. Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
2. Auto Tracking: Supports
3. Customized Alert Area: Supports
4. Two-way Talk: Supports
5. Preset Locations: Supports

Storage:

1. Local Storage: Supports microSD Card (Up to 512 GB)
2. Cloud Storage: EZVIZ Cloud Play storage

General:

1. Operating Conditions: -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
2. IP Grade: Weatherproof Design
3. Power Supply: DC 12V/1.5A
4. Power Consumption: MAX. 12W
5. Dimensions: 145 × 116 × 142 mm
6. Weight: About 668g
