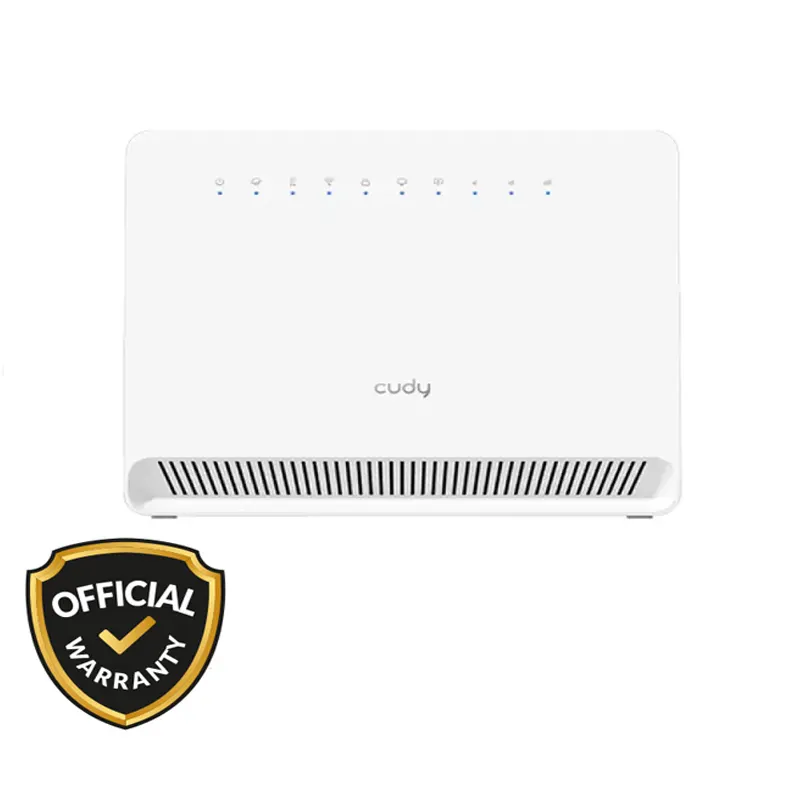

Cudy LT500E 4G AC1200 Wi-Fi Router

Description

Key Features & Specifications of Cudy LT500E 4G AC1200 Wi-Fi Router

Key Features:

1. 4G Cat. 4 with Max 150 Mbps DL
2. 4-Stream Dual-Band Wi-Fi 5
3. 867 Mbps + 300 Mbps Wi-Fi 1
4. 4× Fast Ethernet Ports
5. 1× Nano SIM Slot
6. Cudy Mesh, VPN Server and Client
7. Cudy App, Cloud Control

Specifications:

CPU:

1. Chipset: MT7628
2. CPU Details: 580 MHZ Single-Core, MIPS24KEC

Storage:

1. Flash/ROM: 16 MB (128 Mbit) NOR
2. DDR/RAM: 128 MB (1 Gbit) DDR2

Wireless:

1. 5 GHz Wi-Fi Speed: 867 Mbps
2. 4 GHz Wi-Fi Speed: 300 Mbps
3. 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
4. 4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
5. Wi-Fi Antennas: 2× Internal
6. 5 GHz Antenna Gain Max: 3.97dBi
7. 4 GHz Antenna Gain Max: 3.54dBi
8. FEM or PA/LNA: 5 GHz: 2× External | 2.4 GHz: 2× Internal
9. Beamforming: True
10. Range Performance Max: 170 m (558 ft)
11. Wall Performance: Two wooden walls with Thickness < 10 cm (4'')

Interfaces:

1. Gigabit RJ45 Ports: 4
2. Ethernet Notes: 1× WAN port, the rest are LAN ports
3. LED: System | Internet | WPS | LAN | 2.4 GHz Wi-Fi | 5 GHz Wi-Fi
4. Physical Buttons: WPS Button | Reset Button

Power:

1. Power Methods: DC
2. DC: 12V 1A
3. Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
4. Power Adapter Output: 12V 1A DC
5. Max Power Consumption (W): 10W

Reliability:

1. Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
2. Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
3. Humidity: 10% ~ 90% non-condensing
4. Storage Humidity: 5% ~ 95% non-condensing
