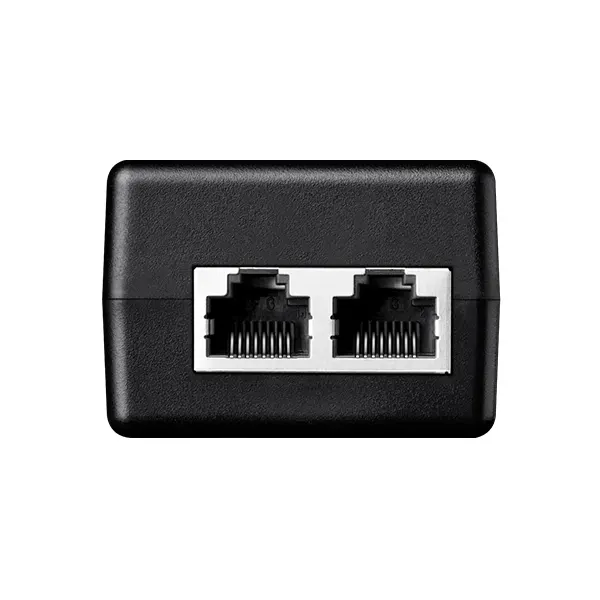

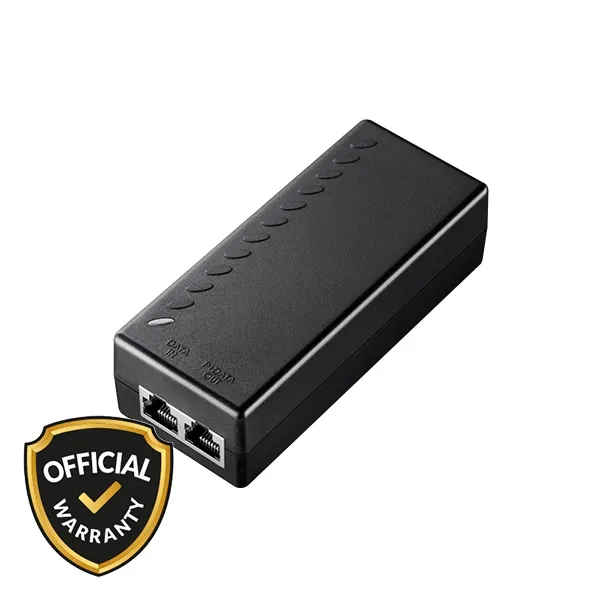

Cudy 30W Gigabit PoE+ Injector Adapter (POE200)

Description

Key Features & Specifications of Cudy 30W Gigabit PoE+ Injector Adapter (POE200)

Key Features:

1. GbE In, GbE Out
2. 100m (328 ft) Transmission Distance
3. 802.3at/af, Max 30W, Mode A, 2-Pair
4. Power LED
5. Surge/ESD Protection

Specifications:

1. Version: POE200 1.0
2. 802.3 Protocols: 802.3i 10 Mbps over Twisted Pair | 802.3u 100 Mbps over Twisted Pair | 802.3ab 1 Gbps over Twisted Pair | 802.3af PoE | 802.3at PoE
3. PoE Uplink Stream: 1× GbE
4. Downlink Stream: 1× GbE, 802.3at/af
5. Downlink Pin Assignment: Mode A
6. Transmission Distance: Cat. 5e or higher cable: 100 Meters at Gigabit
7. LED: Power
8. Power: AC Inlet
9. Power Input: 100-240V, 50/60Hz
10. Power Output: 30W Max
11. Power Protection: Surge Protection | ESD Protection | Overvoltage Protection | Short-Circuit Protection
12. EMC: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
13. Grounding Methods: Three-Prong Plug
14. Operating Temperature: -10 to 45°C
15. Storage Temperature: -40 to 70°C
16. Operating Humidity: 10 to 95% non-condensing
17. Storage Humidity: 5 to 95% non-condensing
18. Casing Material: Plastic
19. Installation: Desktop | Wall Mount
20. Compatibility: AP1300 1.0 | AP1300 Outdoor 1.0 | AP3000 1.0 | LT700 Outdoor 1.0 | AP1300_P 1.0 | AP3000_P 1.0 | POE25 1.0 | POE15 1.0 | POE40 1.0 | AP1300 Wall 1.0 | AP3000 Wall 1.0 | AP3000E Wall 1.0 | POE10 1.0 | WR3000P 1.0 | POE40 2.0 | AP1300D 1.0 | AP3000D 1.0 | AP1200 1.0 | AP3600 1.0 | C200P 1.0 | AP1300E Wall 1.0 | POE10 2.0 | POE25 2.0 | POE15 2.0 | IR04 1.0 | LT700 Outdoor 2.0 | AP1300 2.0 | POE20 1.0 | AP3000S 1.0 | C500P 1.0
21. Certifications: FCC, CE
