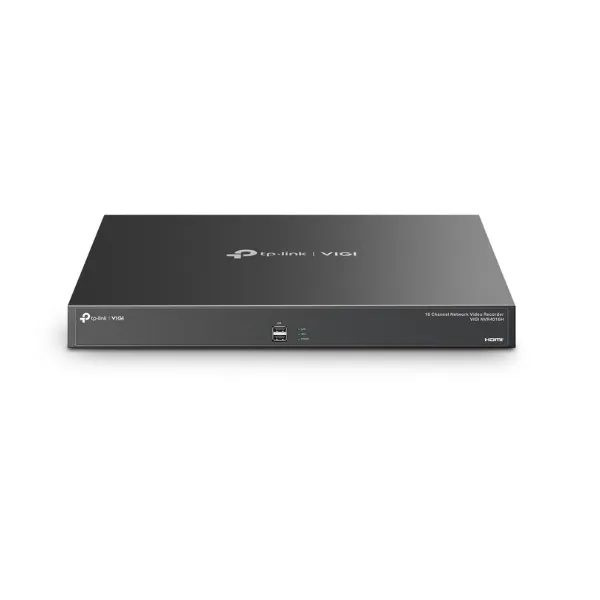

Tp-Link VIGI NVR4016H 16 Channel NVR

1. Up to 16 Access Channel
2. H.265+/H.265/H.264+/H.264 Video Compression
3. Up to 8MP Resolution Recording
4. 4 SATA HDD, 1 ESATA
5. Up to 64TB Max Stor

Brand: Tp-Link

Series: VIGI

Model: NVR4016H

Product Type: NVR

Form Factor: Rack

Body Color: Black

Video Input Chanel: Up to 16 Channel

HDMI Output: 2-ch, HDMI-1 (3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz). HDMI-2 (1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz)

VGA Output: 1-ch, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Synchronous Playback: 16-ch

Video Compression: H.265+/ H.265/ H.264+/ H.264

Resolution: 8MP/ 5MP/ 4MP/ 3MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF

Decoding Capability: 30fps (4-ch@8MP, 6-ch@5MP, 8-ch@4MP), 25fps (10-ch@3MP, 16-ch@1080P)

Stream Type: Video, Video & Audio

Audio Compression: G.711A/ G.711U/ G.726

Audio Input: 1 Channel RCA

Audio Output: 1 Channel RCA

Live View Window Division: 1/ 4/ 6/ 8/ 9/ 16

Network Protocol: UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP

Incoming Bandwidth: Up to 320Mbps

Outgoing Bandwidth: Up to 320Mbps

Network Port: 2x (10/100 Mbps Ethernet Port, RJ-45)

Serial Interface: 1 x RS-232

USB Interface: Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0

HDD Interface: 4x SATA, Up to 16TB (Each)

ESATA: 1

Capacity: Up to 64TB

Detection: Video Tampering, Scene Change Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Motion Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Smart Frame

Power Supply: 100-240V VAC, 1.5A, 50Hz ~ 60Hz

Consumption: 5.5W (Without Disk), 45W (with Disk)

Certification: CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF

Made in: China

Dimensions: 440 x 330 x 44mm

Weight: 4.0kg

Warranty: 2 Years
