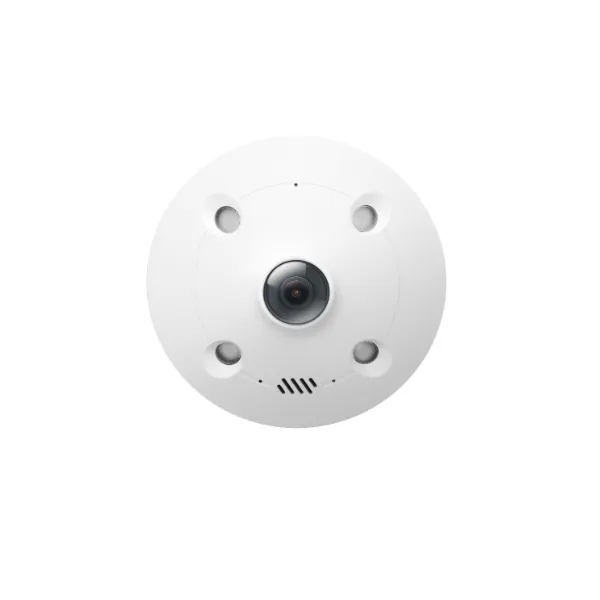

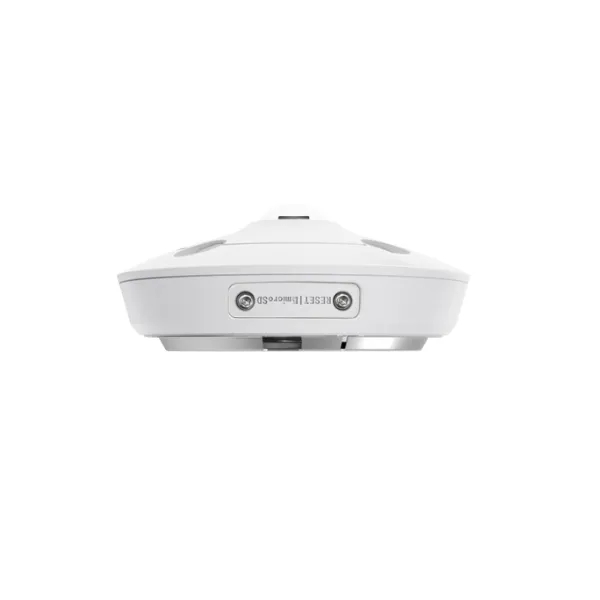

TP-link VIGI InSight S655I 5MP (1.44mm) IR Fisheye Camera
| Category | Camera |
| Model | TP-link VIGI InSight S655I 5MP (1.44mm) IR Fisheye Camera |
| Status | Active |
| Warranty | 2 Years |
Brand: TP-Link
Series: VIGI
Model: InSight S655I (1.44mm)
Product Category: IP Camera
Form Factor: Fisheye
Camera Type: Fixed
Usage: Indoor
Casing Material: Metal
Body Color: White
Mount Type: Wall / Ceiling
Image Sensor Type: 1/2.7 Inch CMOS Sensor
Mega Pixel: 5MP
Camera Resolution: 2560 x 1920
Scanning System: Progressive
Electronic Shutter Speed: 1/3 ~ 1/10000s
Slow Shutter: Yes
Day & Night: IR Cut Filter
Night Vision: Yes
Night Vision Mode: Black and White
Lens Mount Type: M12
Focal Length: 1.44mm
Max. Aperture: F2.0
Field of View (H / V / D): 180° (H) / 180° (V) / 180° (D)
Wavelength: 850nm
Minimum Illumination: 0.01 Lux; 0 Lux with IR
DORI Distance: 1.44mm- D: 28.8m, O: 12m, R: 5.7m, I: 2.8m
Image Settings: Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance
Wide Dynamic Range (WDR): 120dB
SNR: ≥ 52 dB
Image Enhancement: BLC / 3D DNR / HLC / SmartIR
Privacy Mask: Up to 4 Masks
Interface: LAN
Ethernet: RJ-45 (10/100M )
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Cybersecurity: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Simultaneous Live View: Up to 6 (3 Main & 3 Sub Streams)
Storage Type: MicroSD
Card Slot: Yes
Max Memory Capacity: Up to 256GB
Video Compression: H.265+, H.265, H.264+, H.264
Resolution: 2560 x 1920
Frame Rate: Up to 30fps (60Hz), Up to 25fps (50Hz)
Streaming Capability: Main / Sub
Built-in Mic: Yes
Built-in Speaker: Yes
Two-way Audio: Yes
Environment Noise Filtering: Yes
Motion Detection: Yes
Human Detection: Yes
Power Supply: 12V DC / PoE
Power Consumption: 12.14W
PoE Support: Yes
Dimensions: 132 x 132 x 56mm
Weight: 0.43kg
Warranty: 2 Years
Made in: China
