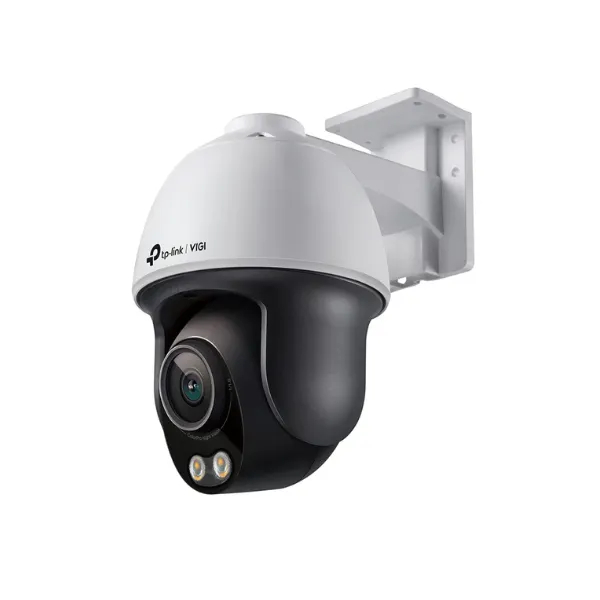

TP-link VIGI C540S 4MP (4mm) ColorPro Pan/Tilt IP Dome Camera

1. 4MP (2688 x 1520px) Resolution
2. 4mm Fixed Lens
3. 1/1.79 Inch CMOS Sensor
4. Color Night Vision Mode
5. Built-in Microphone & Speaker
6. Slow Shutter Supporteds

Brand: TP-Link

Series: VIGI

Model: C540S (4mm)

Product Category: IP Camera

Form Factor: Dome

Camera Type: Fixed

Usage: Outdoor

Casing Material: Plastic

Body Color: White

Mount Type: Wall / Ceiling

Image Sensor Type: 1/1.79 Inch CMOS Sensor

Mega Pixel: 4MP

Camera Resolution: 2688 x 1520

Scanning System: Progressive

Electronic Shutter Speed: 1/3 ~ 1/10000s

Slow Shutter: Yes

Day & Night: IR Cut Filter

Night Vision: Yes

Night Vision Mode: Color

Angle Adjustment: Pan: 0° to 348°, Tilt: 0° to 105°

Lens Mount Type: M16

Focal Length: 4mm

Max. Aperture: F1.0

Field of View (H / V / D): 104° (H) / 55° (V) / 127° (D)

Wavelength: 850nm

Minimum Illumination: 0.0005 Lux; 0 Lux with White Light

DORI Distance: 4mm- D: 63m, O: 26m, R: 13m,s I: 6m

Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance

Wide Dynamic Range (WDR): 120dB

SNR: ≥ 52 dB

Image Enhancement: BLC / 3D DNR / HLC

Privacy Mask: Up to 4 Masks

Pan Speed: 8° to 44°/s; Preset Speed: 44°/s

Tilt Speed: 8° to 44°/s, Preset Speed: 44°/s

Number of Presets: 300

Patrol Scan: 8 patrols, up to 8 presets for each patrol

Park Action: Yes (Preset, Patrol Scan)

3D Positioning: Yes

Interface: LAN

Ethernet: RJ-45 (10/100M )

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Cybersecurity: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Simultaneous Live View: Up to 6 (3 Main & 3 Sub Streams)

Storage Type: MicroSD

Card Slot: Yes

Max Memory Capacity: up to 256

Video Compression: H.265+, H.265, H.264+, H.264

Resolution: 2688 x 1520

Frame Rate: Up to 30fps (60Hz), Up to 25fps (50Hz)

Streaming Capability: Main / Sub

Built-in Mic: Yes

Built-in Speaker: Yes

Two-way Audio: Yes

Environment Noise Filtering: Yes

Motion Detection: Yes

Human Detection: Yes

Power Supply: 12V DC / PoE

Power Consumption: 16.47W

PoE Support: Yes

Ingress Protection (IP): IP66

Dimensions: 203 x 172 x 120

Weight: 0.6kg

Warranty: 2 Years

Made in: China
