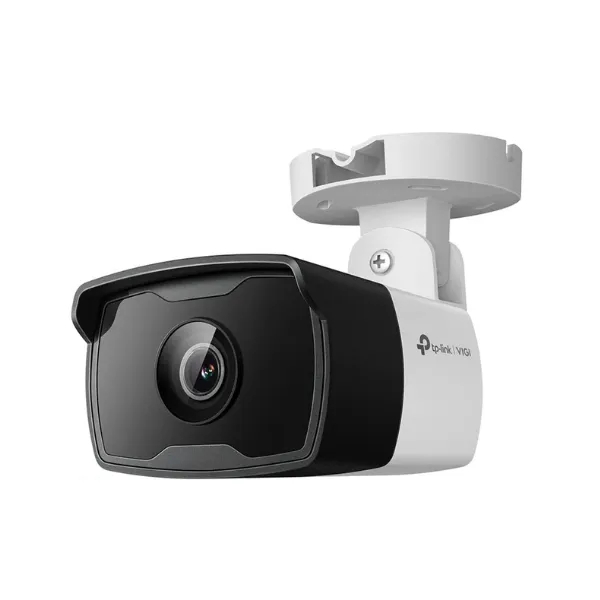

TP-link VIGI C320I 2MP (4mm) Outdoor IR Bullet Camera
| Category | Camera |
| Model | TP-link VIGI C320I 2MP (4mm) Outdoor IR Bullet Camera |
| Status | Active |
| Warranty | 2 year |
Brand: TP-Link
Series: VIGI
Model: C320I (4mm)
Product Category: IP Camera
Form Factor: Bullet
Camera Type: Fixed
Usage: Outdoor
Casing Material: Plastic
Body Color: White
Mount Type: Wall / Ceiling
Image Sensor Type: 1/3 Inch CMOS Sensor
Mega Pixel: 2MP
Camera Resolution: 1920 x 1080
Scanning System: Progressive
Electronic Shutter Speed: 1/3 ~ 1/10000s
Slow Shutter: Yes
Day & Night: IR Cut Filter
Night Vision: Yes
Night Vision Mode: Black and White
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Lens Mount Type: M12
Focal Length: 4mm
Max. Aperture: F2.0
Field of View (H / V / D): 75.2° (H) / 40.8° (V) / 88.3° (D)
Wavelength: 850nm
Minimum Illumination: 0.01 Lux; 0 Lux with IR
DORI Distance: 4mm- D: 60m, O: 25m, R: 12m, I: 6m
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance
Wide Dynamic Range (WDR): DWDR
SNR: ≥ 52 dB
Image Enhancement: BLC / 3D DNR / HLC / SmartIR
Privacy Mask: Up to 4 Masks
Interface: LAN
Ethernet: RJ-45 (10/100M )
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Cybersecurity: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Simultaneous Live View: Up to 6 (3 Main & 3 Sub Streams)
Video Compression: H.265+, H.265, H.264+, H.264
Resolution: 1920 x 1080
Frame Rate: Up to 30fps (60Hz), Up to 25fps (50Hz)
Streaming Capability: Main / Sub
Built-in Mic: Yes
Environment Noise Filtering: Yes
Motion Detection: Yes
Human Detection: Yes
Power Supply: 12V DC / PoE
Power Consumption: 5.5W
PoE Support: Yes
Ingress Protection (IP): IP67
Dimensions: 188.03 x 78.50 x 71.55mm
Weight: 0.43kg
Warranty: 2 Years
Made in: China
