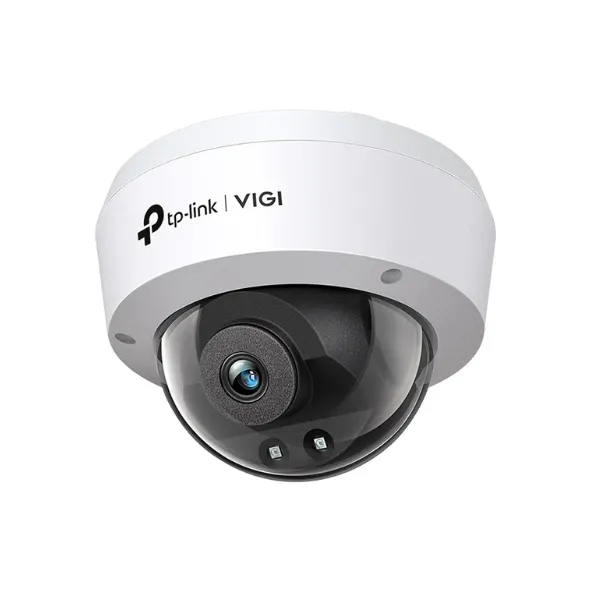

TP-link VIGI C230 3MP (4mm) Full-Color IP Dome Camera
| Category | Camera |
| Model | TP-link VIGI C230 3MP (4mm) Full-Color IP Dome Camera |
| Status | Active |
Brand: TP-Link
Series: VIGI
Model: C230 (4mm)
Product Category: IP Camera
Form Factor: Dome
Camera Type: Fixed
Usage: Indoor & Outdoor
Casing Material: Plastic
Body Color: White
Mount Type: Wall / Ceiling
Working Distance: Up to 10 Meter
Image Sensor Type: 1/2.8 Inch CMOS Sensor
Mega Pixel: 3MP
Camera Resolution: 2304 x 1296
Scanning System: Progressive
Electronic Shutter Speed: 1/3 ~ 1/10000 s
Slow Shutter: Yes
Day & Night: IR Cut Filter
Night Vision: Yes
Night Vision Mode: Color
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360
Lens Mount Type: M12
Focal Length: 4mm
Max. Aperture: F1.6
Field of View (H / V / D): 89.1° (H) / 45.1° (V) / 106.9° (D)
Wavelength: 850nm
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
DORI Distance: 4mm- D: 70m, O: 29m, R: 14m, I: 7m
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR
Wide Dynamic Range (WDR): DWDR
SNR: ≥ 52 dB
Image Enhancement: BLC / 3D DNR / HLC / SmartIR
Privacy Mask: Up to 4 Masks
Interface: LAN
Ethernet: RJ-45 (10/100M )
Protocol: TCP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
Cybersecurity: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Simultaneous Live View: Up to 6 (3 Main & 3 Sub Streams)
Video Compression: H.265+, H.265, H.264+, H.264
Resolution: 2304 × 1296
Frame Rate: Up to 25fps
Streaming Capability: Main / Sub
Built-in Mic: Yes
Environment Noise Filtering: Yes
Motion Detection: Yes
Human Detection: Yes
Power Supply: 12V DC / PoE
Power Consumption: 4.7W
PoE Support: Yes
Ingress Protection (IP): IP67
Vandal Resistance (IK): IK10
Certifications: CE / BSMI / VCCI / ONVIF
Dimensions: 115 x 115 x 86
Weight: 0.2kg
Warranty: 2 Years
Made in: China
