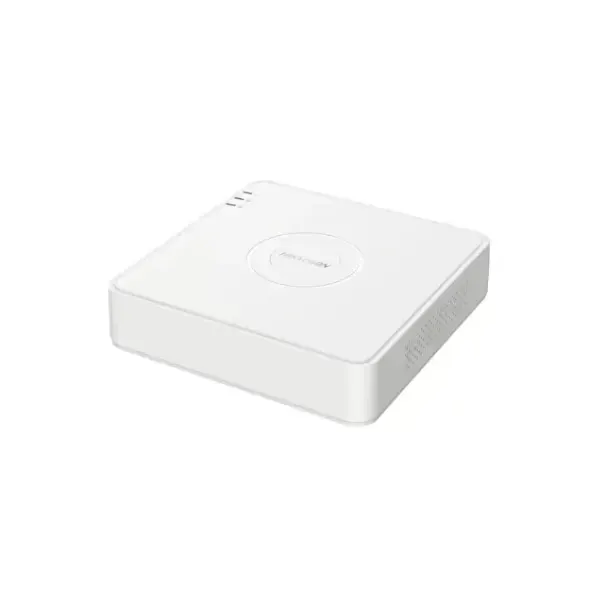

Hikvision iDS-7108HQHI-M1/T 08 Channel Mini AcuSense DVR

1. 08 Access Channel
2. H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video Compression
3. Up to 6MP Resolution Recording
4. 1 SATA Up to 10 TB Storage

Brand: Hikvision

Model: iDS-7108HQHI-M1/T

Product Type: DVR

Form Factor: Rack

Body Color: White

Chassis: 1U

Video Input Chanel: 2-ch (Up to 10-Ch)

Enhanced IP Mode on:

4-Ch (Up to 12-Ch), Each Up to 4 Mbps

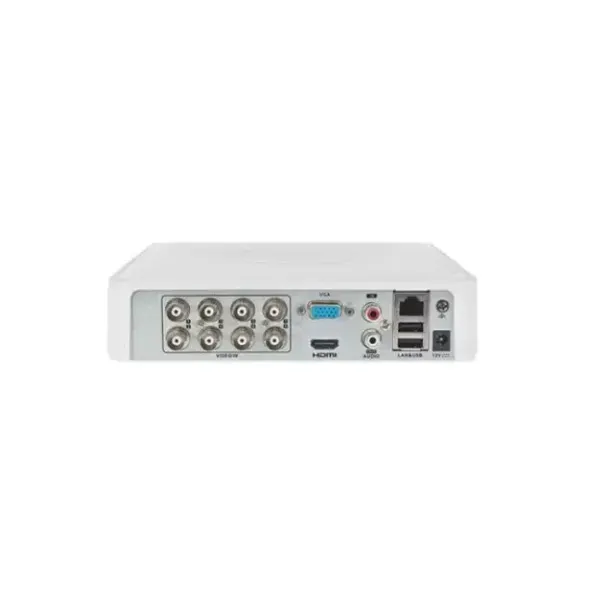

Analog Video Input: 8-Ch, BNC Interface (1.0 Vp-p, 75 Ω),

Supporting Coaxitron Connection

HDTVI Input: 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps,

4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input: 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,

1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input:5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,

1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input: Support

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Audio Output: 1-Ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (Using the First Audio Input)

Synchronous Playback: 08-Ch

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolution: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame rate: 3K lite@12fps; 4 MP lite/1080p@15fps; 720p/WD1/4CIF/VGA/CIF

@20fps, 5 MP lite@12fps; 4 MP lite/1080p@15fps; 720p/WD1/4CIF/VGA

/CIF@20fps, 4 MP lite/1080p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/

30fps (N), 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

3K lite/5 MP lite@12fps; 4 MP lite@15fps; 1080p lite/720p

lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Video Bitrate: 32 Kbps to 6 Mbps

Audio Bitrate: 64 Kbps

Synchronous Playback: 08-Ch

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP,

SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Remote Connection: 64

Total Bandwidth: 96

Network Port: 1, RJ45 10/100 Mbps Self-adaptive Ethernet Interface

USB Interface: Rear Panel: 2 × USB 2.0

HDD Interface: 1 SATA

Capacity: Up to 10 TB Capacity

Facial Recognition: Face Picture Detection, Face Picture Search

Perimeter Protection: Up to 4-ch

Power Supply: 12 VDC, 1.33 A

Consumption: ≤ 12 W (Without HDD)

Others: Up to 12-ch IP Camera Inputs (Up to 6 MP)

Deep Learning Based Human and Vehicle

Targets Classification of Motion Detection 2.0

Connectable to Wi-Fi Network by Wi-Fi Dongle Through USB Interface

Dimensions: 200 × 200 × 48 mm

Weight: ≤ 1 kg (Without HDD, 2.2 lb.)

Warranty: 1 Year
