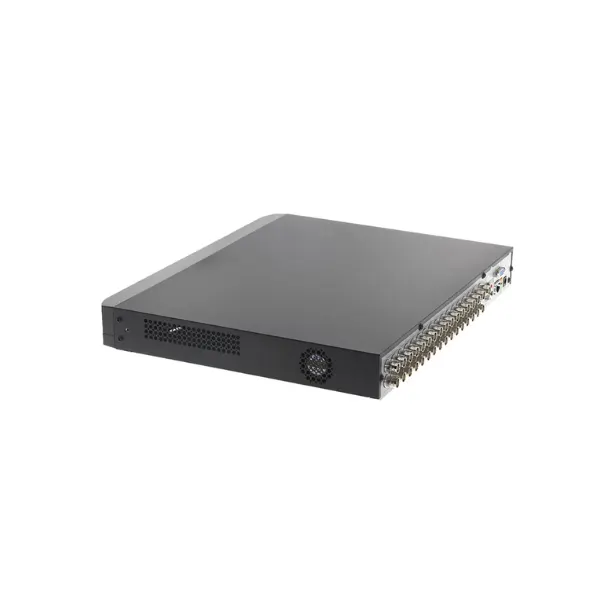

Hikvision DS-7232HGHI-M2 5MP Support 32 Channel HD DVR

1. 32 Access Channel
2. H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video Compression
3. Up to 5MP Resolution Recording
4. 2 SATA Up to 10 TB Storage for Each One

Brand: Hikvision

Model: DS-7232HGHI-M2

Product Type: DVR

Form Factor: Rack

Body Color: Black

Chassis: 1U

Video Input Chanel: 2-Ch (Up to 18-Ch)

Analog Video Input: 32-Ch, BNC Interface (1.0 Vp-p, 75 Ω),

Supporting Coaxitron Connection

HDTVI Input: 1080p25, 1080p30, 720p25, 720p30

AHD Input: 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

CVBS Input: PAL/NTSC

HDMI Output: 1-Ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output: 1-Ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

Audio Input: 1-Ch,RCA (2.0 Vp-p, 1 KΩ),32-Ch via Coaxial Cable

Audio Output: 1-Ch, RCA (Linear, 1 KΩ)

Two-Way Audio: Reuse 1-Ch, RCA (2.0 Vp-p, 1 KΩ) (Using the First Audio Input)

Synchronous Playback: 16-Ch

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolution: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

720p/WD1/4CIF/VGA/CIF, WD1/4CIF/VGA/CIF

Frame Rate: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps

720p/WD1/4CIF/VGA@15fps; CIF@25fps, WD1/4CIF/VGA/CIF@25fps, CIF/QVGA@15fps

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Video Bitrate: 32 Kbps to 4 Mbps

Audio Bitrate: 64 Kbps

Synchronous Playback: 16-Ch

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS,

NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, EHome

Remote Connection: 128

Total Bandwidth: 128 Mbps

Network Port: 1, RJ45 10/100M/1000 Mbps Self-adaptive Ethernet Interface

Serial Interface: RS-485 (Half-duplex)

USB Interface: Front Panel: 1 x USB 2.0 + Rear Panel: 1 × USB 3.0

HDD Interface: 2 SATA

Capacity: Up to 10 TB Capacity for Each Disk

Perimeter Protection: Deep Learning-based Motion Detection 2.0

is Enabled by Default for all Analog Channels, It

can Classify Human and Vehicle, and Extremely Reduce False Alarms Caused by Objects Like

Leaves and Lights;

Quick Search by Object or Event Type is Supported

Power Supply: 12 VDC, 3.33A

Consumption: ≤ 18 W (Without HDD)

Others:

Connectable to Wi-Fi Network by Wi-Fi Dongle Through USB Interface

Up to 18-Ch IP Camera Inputs (Up to 5 MP)

Deep Learning Based Human and Vehicle Targets Classification of

Motion Detection 2.0

Dimensions: 380 × 320 × 48 mm

Weight: ≤ 2.2 kg (Without HDD, 4.9 lb)

Warranty: 1 Year
